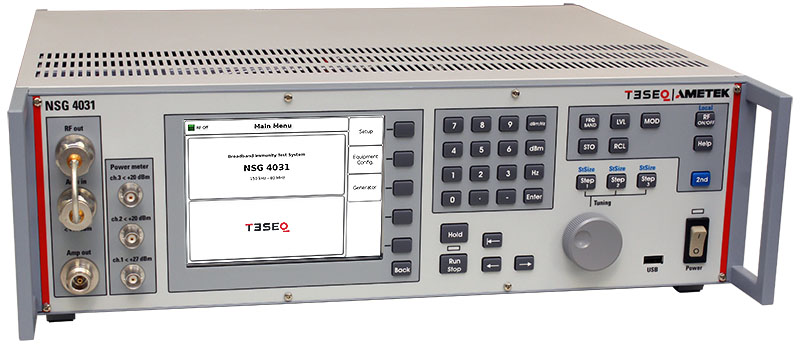

Teseq NSG 4031 Broadband Immunity Test System
The Teseq NSG 4031 Broadband Immunity Test System is a 150kHz to 80MHz transient immunity generator designed to generate test waveforms in compliance with IEC/EN 61000-4-31. Teseq NSG 4031 test systems feature a white noise generator with four different band filters, which enables band-limited testing as called for by future test standards. An internal power amplifier featuring over 80W of output power adheres to test levels 1-3 as described in Table 1 of IEC / EN 61000-4-31 and includes an optional 2dB attenuator for cases of severe DUT mismatches. The three front panels allow for simple test level settings procedure, and an internal power meter displays forward power and the VSWR of the connected setup. Navigate the Teseq NSG 4031 via a 5.7" color display.
| White Noise Generator | |
|---|---|
| Frequency bands | 150kHz - 80MHz, 150kHz - 30MHz, 1MHz - 30MHz, 1MHz - 80MHz |
| Level range | min -60 dBm/Hz to -40 dBm/Hz |
| Broadband signal flatness | < ±3 dB (150 kHz to 80 MHz) |
| Out of band attenuation | > 20 dB (100 MHz) |
| Rise / fall time (10% / 90%) | < 1 µs |
| Modulation frequency range | 1 Hz to 10 Hz |
| Frequency resolution | 1 Hz |
| Duty cycle | 10% to 90% |
| Power Meter | |
| Frequency range | 9 kHz to 1 GHz |
| Channel 1 linear measurement range | -35 dBm to +27 dBm |
| Channel 2, 3 linear measurement range | -45 dBm to +20 dBm |
| Channel 1-3 | +28 dBm |
| Noise level | >5 dB below the measurement range |
| Input return loss | >20 dB (below 500 MHz), >17 dB (500 MHz to 1 GHz) |
| Connector | BNC socket, 50 Ω |
| Accuracy 10 to 30°C | <0.5 dB, typ. <0.3 dB |
| Power Amplifier | |
| Frequency range | 150 kHz to 80 MHz |
| Input impedance | 50 Ω |
| Output impedance | 50 Ω |
| Input return loss | min. 10 dB |
| Output return loss | nominal min. 9.5 dB, 0 dB without damage |
| Gain | min. 50 dB |
| Gain flatness | max. + / - 3 dB |
| Saturated output power | min. 49 dBm |
| Linear output power | min. 48 dBm |
| Max. input power without damage | max. +10 dBm |
| Harmonic distortion at linear output power | typ. < -20 dBc |
- IEC/EN 61000-4-31 immunity test system
- 150kHz to 80MHz integrated white noise generator
- 3 power meter inputs - 9kHz to 1GHz
- 80W class A power amplifier built in
- 5,7“ TFT color display
- Internal, menu-based control software
SKU: TESE-NSG4031
