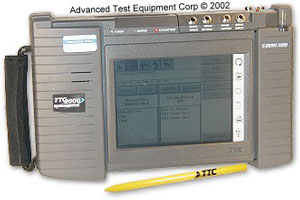

TTC 2207-DS3 Portable Data Communication Analyzer

TTC 2207-DS3 Portable Data Communication Analyzer
Enlarge Image
TTC 2207-DS3
Request Quote Print Page
Manual Datasheet

TTC 2207 Field Services DS1 / DS3 Module; Advanced Stress Patterns; Fractional T1; VF PCM TIMS; Signaling.


Specifications:

Display 6-inch monochrome graphic LCD
Clocks Internal, Recovered
Input Impedance 100-1000Ω
Input Frequency Range 1.5 MHz
Receive Level +6 to -35 dBdsx
Interface Bantam; RS-232
Requires TTC 2000 Test Pad (Included)
