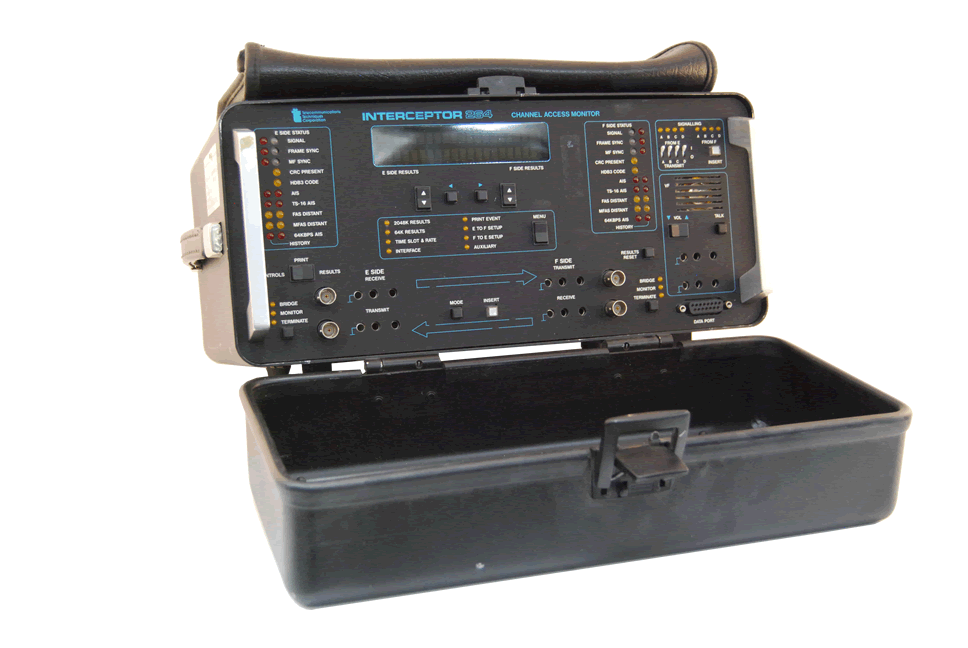

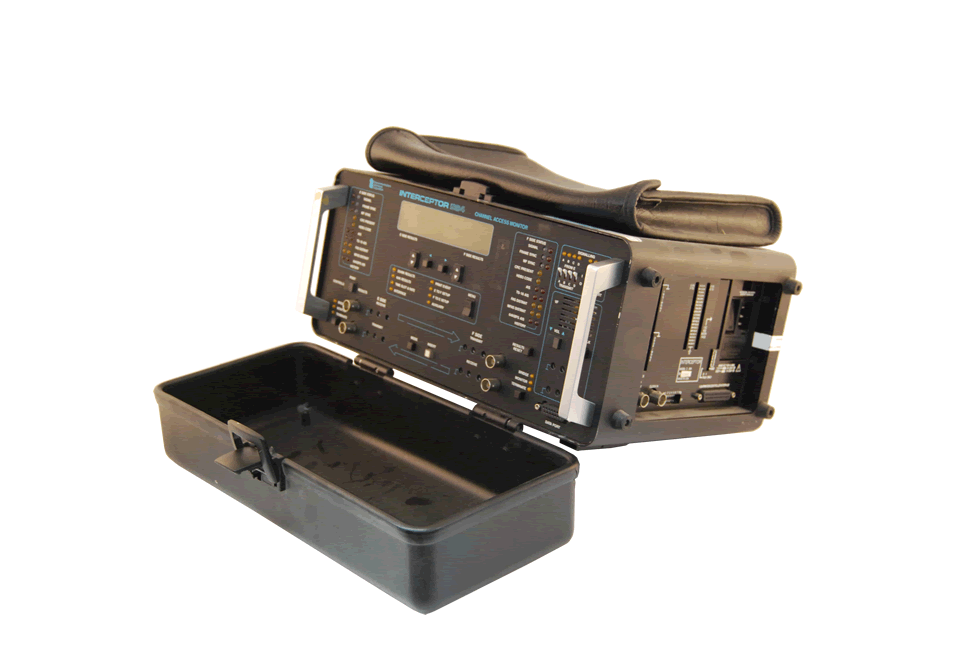

TTC 264 Interceptor Access Monitor

TTC 264 Interceptor Access Monitor
Enlarge Image
TTC 264 Interceptor Access Monitor TTC 264 Interceptor Access Monitor TTC 264 Interceptor Access Monitor
TTC 264
Request Quote Print Page
Specifications

Key Features:

  • Full Duplex Drop and Insert
  • Full Duplex Channel Access
  • N, Mx64kbps and N, Mx56kbps Analysis
  • 2 Mbps Results and Status Indicators
  • Automatic Print Capability
  • Portable
  • Remote control


Measurements:

2048 K Results

  • Frequency
  • FAS Word
  • NOT FAS Word
  • FAS Errors*
  • MFAS Errors*
  • Code Errors*
  • CRC-4 Errors*
  • FAS Rate*
  • MFAS Rate*
  • CRC-4 Rate*
  • Code Rate*

64 K Results

  • Timeslot #YY (Received byte)

G.821 Performance

  • Pattern Synchronization
  • Peak Code
  • Level
  • Bit Errors
  • Average Bit Error Rate
  • Bit Error Rate
  • Test Seconds
  • Errored Seconds
  • Error Free Seconds
  • Percent Error Free Seconds
  • Severely Errored Seconds
  • Percent Severely Errored Seconds
  • Bit Error Rate Excluding Severely Errored Seconds
  • Degraded Minutes
  • Percent Degraded Minutes
  • Synchronization Loss
  • Synchronization Loss Seconds
  • Available Seconds
  • Percent Available Seconds
  • Pattern Slips

Operating Modes:


Framing: (CCITT G.704)

  • FAS with or without CRC-4
  • MFAS with or without CRC-4

2 Mbps Channel Access:

  • 64 kbps/ 56 kbps timeslots for VF or error analysis
  • N, mx64kbps/ n, Mx56kbps for error analysis

Channel Associated Signaling Analysis:

  • ABCD Signaling:
    1. Display ABCD bits
    2. Print signaling changes
    3. Drop and Insert ABCD bits
  • E & M Signaling
    1. Drop/Insert Earth-on/off conditions
    2. Print signaling changes

Options:


264-1 - 2048 K Results

264-2 - V.24/ RS - 232 Printer Interface

264-4 - 64 kbps/ G.703 Interface

264-5 - BNC Connectors

264-6 - E & M Signaling

264-7 - G.821 Performance Analysis
