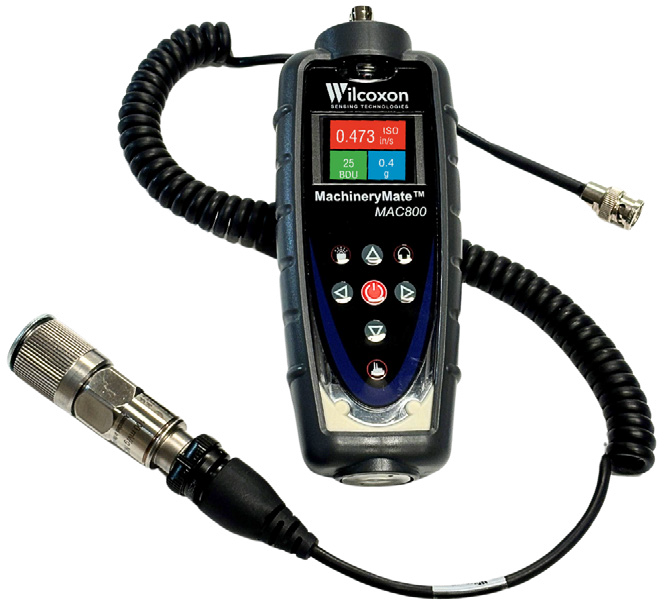

Wilcoxon MAC800 Handheld Vibration Meter Kit
The Wilcoxon MAC800 is a portable vibration analyzer for machinery condition monitoring. It includes internal data storage, ISO-compliant alarm settings, Bluetooth connectivity, and an 800-line FFT spectrum for detailed diagnostics. The unit comes with a 100 mV/g accelerometer, magnetic mount, USB docking station, and DataMate software for data trending and reporting. Its IP67-rated enclosure provides protection in harsh environments, with optional accessories for speed and auditory analysis.
| Measurement Capability | Vibration analysis with 800-line FFT spectrum; BDU reading for bearing faults |
| Frequency Range | 10 Hz – 1 kHz (600–60,000 CPM); extended up to 10 kHz for FFT |
| Dynamic Range | ±60 g, 96 dB resolution |
| Sensor | 100 mV/g accelerometer with magnetic mount; ±10% sensitivity tolerance |
| Data Storage & Software | Internal data storage; DataMate software included; upgradeable to DataMate PRO |
| Connectivity | Bluetooth capability; USB docking station |
| Display | OLED full-color, high contrast, auto-dimming |
| Alarms | Built-in ISO-compliant alarms |
| Power | 20 hours normal use (battery) |
| Environmental Protection | IP67-rated rugged enclosure |
| Certifications | Manufactured in ISO 9001 facility |
- Data trending software
- Internal data storage
- Built-in ISO alarms and Bluetooth capability
- IEPE power enable/disable for externally powered sensors
- Standard accelerometer with magnetic mount and coiled cable
- BDU reading to easily identify bearing problems
- 800 line FFT spectrum Manufactured in an approved ISO 9001 facility
- 100 mV/g sensor with magnet
- Expandable DataMate software
- Carrying case
SKU: WILX-MAC800
