| Dimensions |
6.97 in x 4.13 in x 2.04 in (177 mm x 105 mm x 52 mm)
Not including the bottom mount ADT158Ex if installed |
| Weight |
1.65 lb. (0.75 kg) |
| RTD measurement |

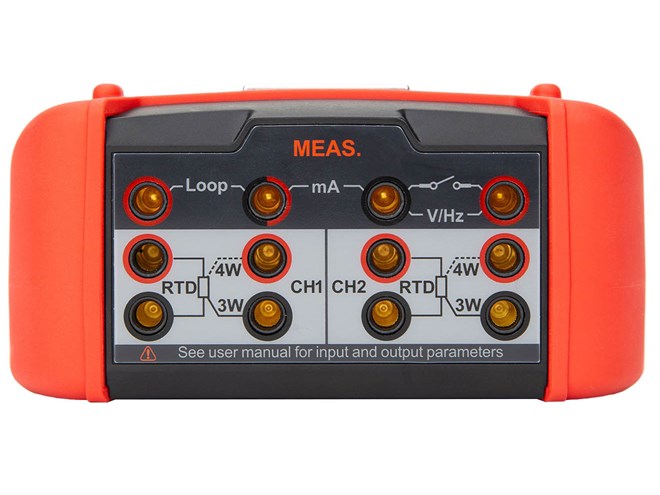

2, 3, or 4 wire (user selectable)
Unit measurement as °C, °F, K, or ohms |
| Barometric accuracy |
±55 Pa |
| Measurement rate |
mV, V, mA & frequency and RTD: 3 times/ sec
Pressure module: 1~10 times/sec selectable (3 as default)
Barometric: 1 times/ sec |
| Data storage |
Logging interval: from 0.1~9999 seconds
Log up to 10 million readings (single channel) |
| Operating temperature |
-20 to 50°C (-4 to 122°F) |
| Storage temperature range |
-30 to 70°C (-22 to 158°F) |
| Humidity |
0% to 95% RH, non-condensing |
| Warm-up time |
10 minutes to fully meet technical specifications |
| Port protection voltage |
30 V max |
| Protection level |
IP67, 1 meter drop test |
| Display |
4.4-inch color display capacitive screen
Transflective
LED backlight |
