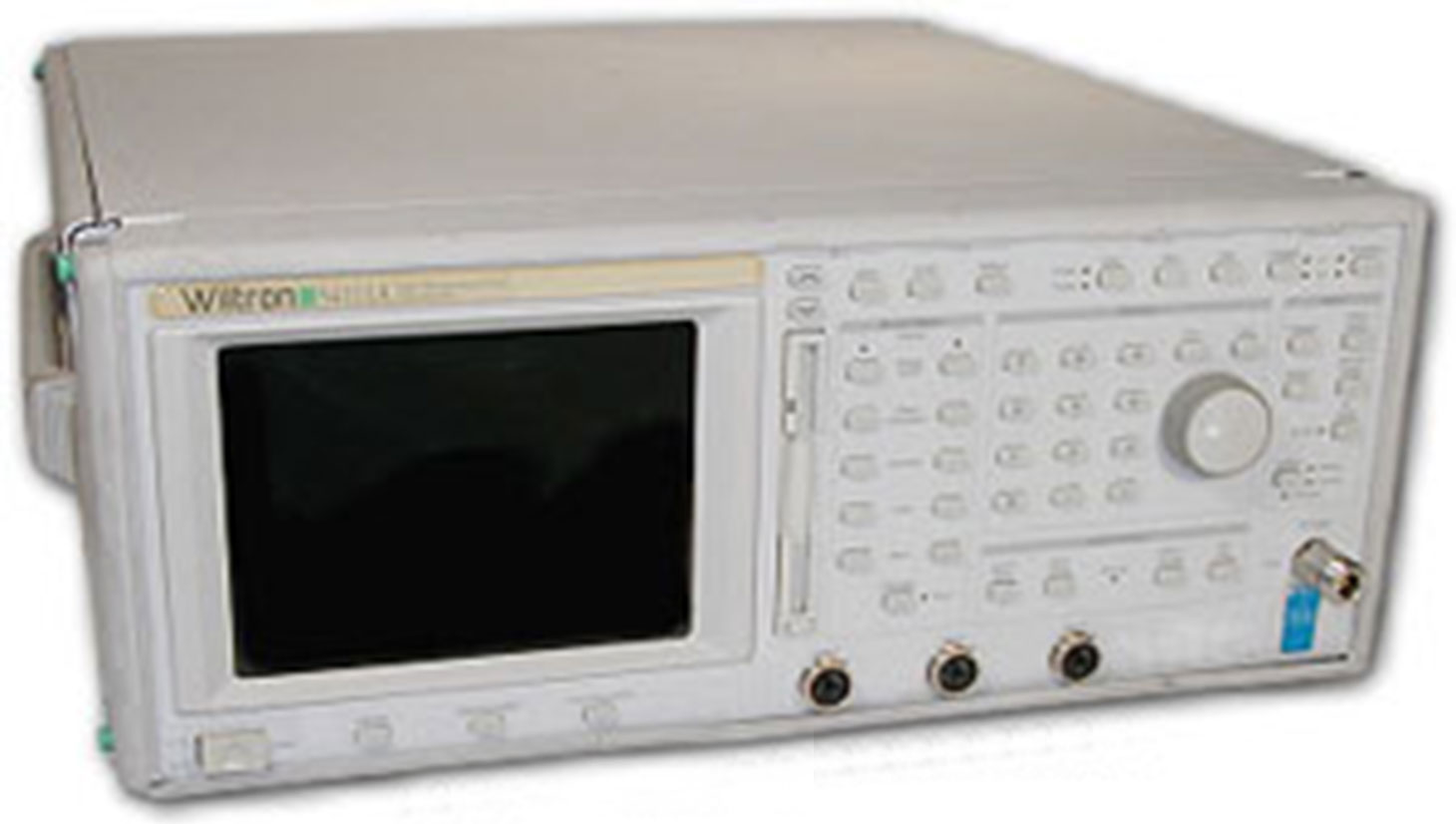

Wiltron 54111A Scalar Network Analyzer
Enlarge Image
Anritsu 54111A
Request Quote Print Page
Manual Specifications
1MHz-3000MHz Scalar Measurement System
Anritsu 54111A Features
  • Frequency Range: 1 MHz - 3 GHz
  • Measures: Transmission, return loss, SWR, power, return loss, and optional distance-to-fault.
  • Dynamic Range: -55 to 16 dBm
  • Display Channels/Inputs: 2 standard and 1 reference
  • Cursor Functions: trace max, min, dB level, dB bandwidth, next marker, and active marker.
  • Save/recall setup including cal data
  • Direct printer output
  • Requires external detectors and/or SWR auto-tester
