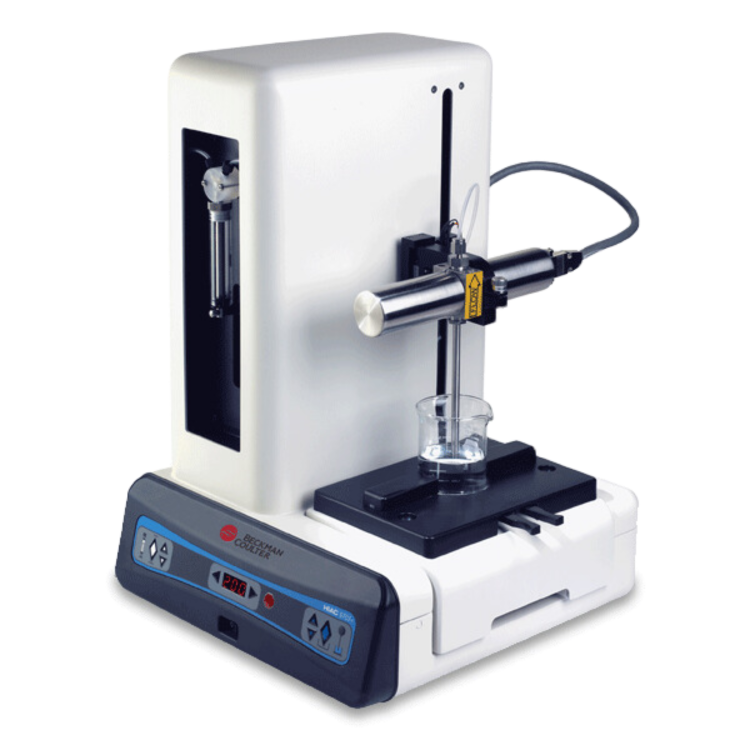

Beckman Coulter HIAC 9703+ Pharmaceutical Particle Counter

The Beckman Coulter HIAC 9703+ is a liquid particle counting system designed for pharmaceutical and biotech applications. It supports sample volumes from 1 mL to over 1000 mL, with interchangeable sensors detecting particles from 0.5 µm to 600 µm. The system features automated flushing, cleaning routines, and regulatory compliance with USP <788>, EP <2.9.19>, and 21 CFR Part 11. It includes configurable test routines, multi-level security access, and automated data recovery for contamination monitoring and quality control.

Product Info Product Options Related Products

Sample Flow Rate	10 – 100 ml/min (determined by sensor used)
Flow Rate Accuracy	> 95%
Volume Accuracy	> 95%
Sample Temperature Range	5 – 40 °C (40 – 104 °F)
Sampler Operating Temperature	5 – 40 °C (40 – 104 °F), 0 – 80% RH (non-condensing)
Viscosity Limit	< 50 cP
Tare Volumes for Probes	0.091 ml (81 L × 1.2 ID mm) 0.172 ml (154 L × 1.2 ID mm) 1.57 ml (140 L × 6.35 ID mm)
Sample Bottle Clearance	153 mm (6.02 inches)
Power Requirement	100/230 VAC, 50/60 Hz
Maximum Power Consumption	67 W at 115/230 VAC
Dimensions (W × D × H)	343 × 337 × 482 mm (13.5 × 13.3 × 19.0 in)
Weight	10.7 kg (23.6 lbs)

Flexible Testing: Supports small (1 mL) to large (>1000 mL) volumes.
Automated Cleaning & Flushing: Reduces manual maintenance and contamination risks.
Configurable Test Routines & Reports: User-defined particle size, sample volume, and pass/fail limits.
Regulatory Compliance: Meets USP <788>, EP <2.9.19>, JP <11>, <24>, KP <52>, and USP <789> standards for injectable drugs, ophthalmic solutions, and inhalants.
Security & Compliance: Multi-level security access control to meet 21 CFR Part 11 compliance.
Interchangeable Sensors & Probes: Particle size detection from 0.5 µm to 600 µm.
Advanced Alarms & Notifications: Alerts for bubble interference, sensor contamination, calibration, and regulatory updates.
Reliable Data Management: Prevents data loss with automatic recovery and scheduled network backups.

USP <787> – Subvisible Particulate Matter in Therapeutic Protein Injections
USP <788> – Particulate Matter in Injections
EP 2.9.19 – Particulate Contamination: Sub-visible Particles
JP 11 & JP 24 – Japanese Pharmacopoeia testing requirements
KP 52 – Korean Pharmacopoeia standards for particulate matter testing

SKU: BECK-HIAC-9703+

Product Options

Standard Sensors	Range
HRLD-150	1.3 µm - 150 µm
HRLD-150JA	1.3 µm - 150 µm (chemical compatibility)
HRLD-400	2 µm - 400 µm
HRLD-600JS	2 µm - 600 µm (chemical compatibility)
