Cantronic Systems
Cantronic U340 Aerial OGI Camera

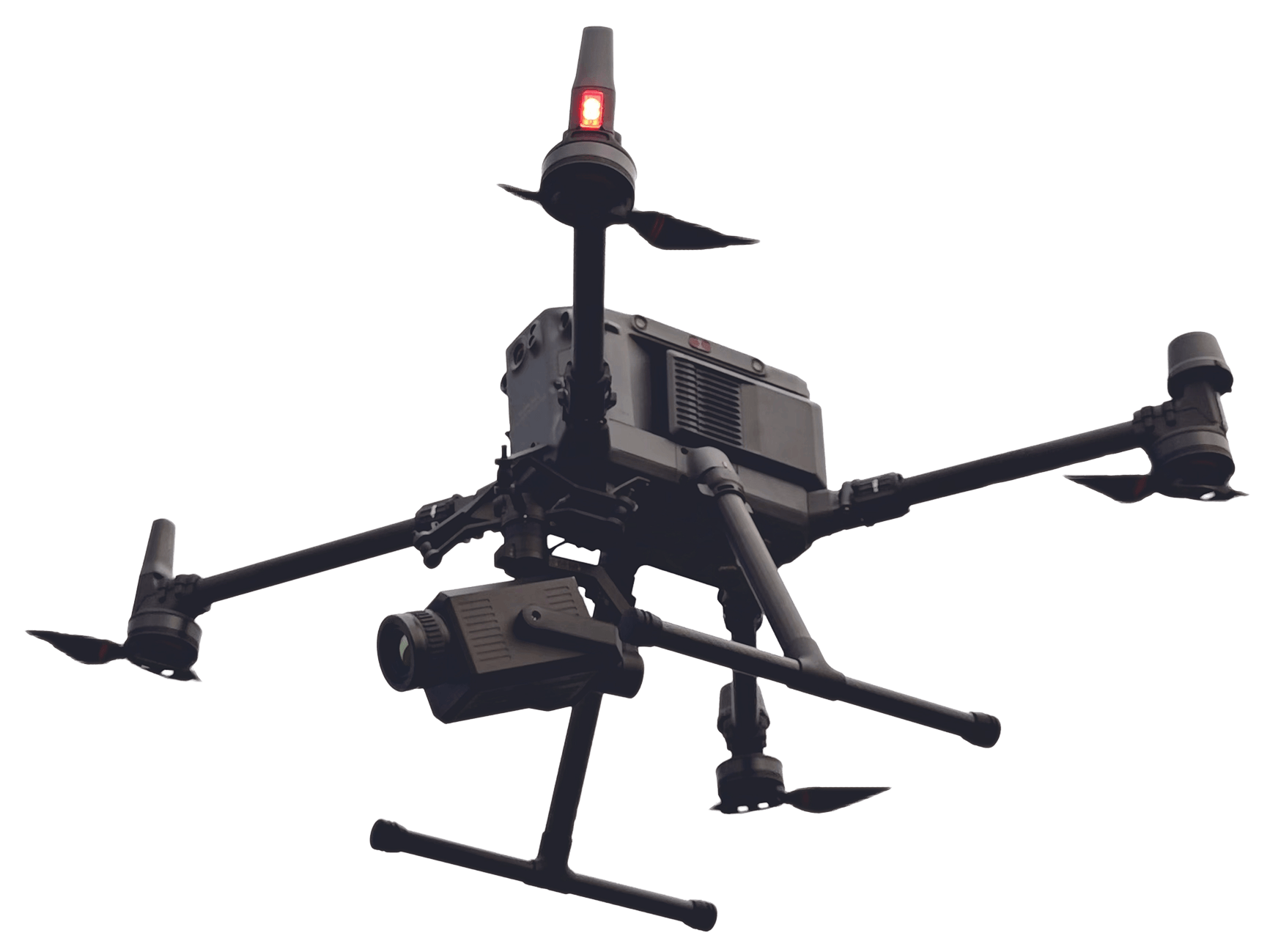

The Cantronic U340 Aerial OGI Camera is a UAV‑mounted optical gas imaging system for real‑time visualization of methane and VOC gas leaks using MWIR imaging in the 3.2–3.5 µm spectral range and a 320 × 256 HOT T2SL detector. It supports 1×–8× digital zoom, ≤ 15 mK NETD, and multiple imaging modes (gas, temperature measurement, and standard thermal), with micro‑HDMI output up to 1920 × 1080 and 64 GB onboard storage for images and video with temperature data. The camera integrates with the DJI M300 RTK for aerial transmission, operates from DC 10–28 V, and weighs ≤ 800 g (without lens) for remote, non‑contact inspections in industrial environments.
Detectable Gases
400+ compounds: Methane, Acetic acid, Benzene, Butadiene, Butene, Dimenthyl-Benzene, Ethane, Ethylene, Ethyl Benzene, Ethylene oxide, Hexane, Heptane, Isobutylene, Isopropyl alcohol, Isoprene, Methanol, MEK, Methyl Ethyl Ketone, Octane, Pentene, Propane, Propana.
