Chatillon UTSE-2 Universal Electronic Tester

Chatillon UTSE-2 Universal Electronic Tester
Enlarge Image

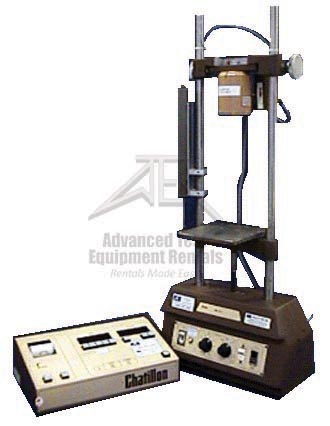

Chatillon UTSE-2
Request Quote Print Page
Datasheet
Motorized, microprocessor based universal electronic tester designed for testing compressive/tensile strengths, yield and breaking strengths of various materials to its capacity of 550 lbs.

Chatillon UTSE-2 Features
Motorized Test Stand
  • Standard travel speed is adjustable from 1" per minute to 12" per minute.
  • Maximum, minimum, or variable speed may be selected.
  • Standard vertical travel distance is 6" and is controlled by a heavy duty up/down switch.
  •
Display cabinet with microprocessor and associated digital display
  • An integral printer may be activated by the console "PRINT" button.
Chatillon UTSE-2 Specs
Standard
  • 550 lb. load cell
  • Compression Plate lower: 6"wide x 3" deep
  • Clevis grips and link



Mechanical
  • Vertical opening - standard distance between compression plates is 20".
  • Horizontal opening - clear opening between columns is 8".
  • Crosshead speed - adjustable from 1" to 12" per minute standard.
  • Crosshead travel - 6" standard.



Digital Displays 9/16 red LED
Force (5 Digits) Low Range High Range
lb 0-110.00 x 0.01 0-550.00 x 0.05
kg 0-50.000 x 0.005 0-250.00 x 0.02
N 0-500.00 x 0.05 0-2500.0 x 0.2



Deflection (5 Digits)
  • in:  0-6.000 x 0.0001
  • mm:  0-152.00 x 0.02



Overload Protection



Tare Adjustment
  • Up to 10% of the maximum force of the range in use can be tared out using the pushbutton zero without affecting the net capacity of the tester
  • Tare adjustment between 10% and 100% of capacity can be made via the same pushbutton with a resulting reduction in net capacity equal to the amount of the tare.



Analog Outputs



For Recorders with 0.5 M ohms Impedance minimum:
  • Force:
    1. 0- ± 550 lb. =  0-  ± 5.7 Vdc (approx.)
    2. 0-  ± 110 lb. =  0-  ± 1.1 Vdc (approx.)
  • Deflection:  0- 6" = 0-  ± 5.6 Vdc (approx.)



Weight
  • Instrument 80 lbs. (approx.)
