Com-Power LIN-120C
LISN | 150 kHz - 30 MHz

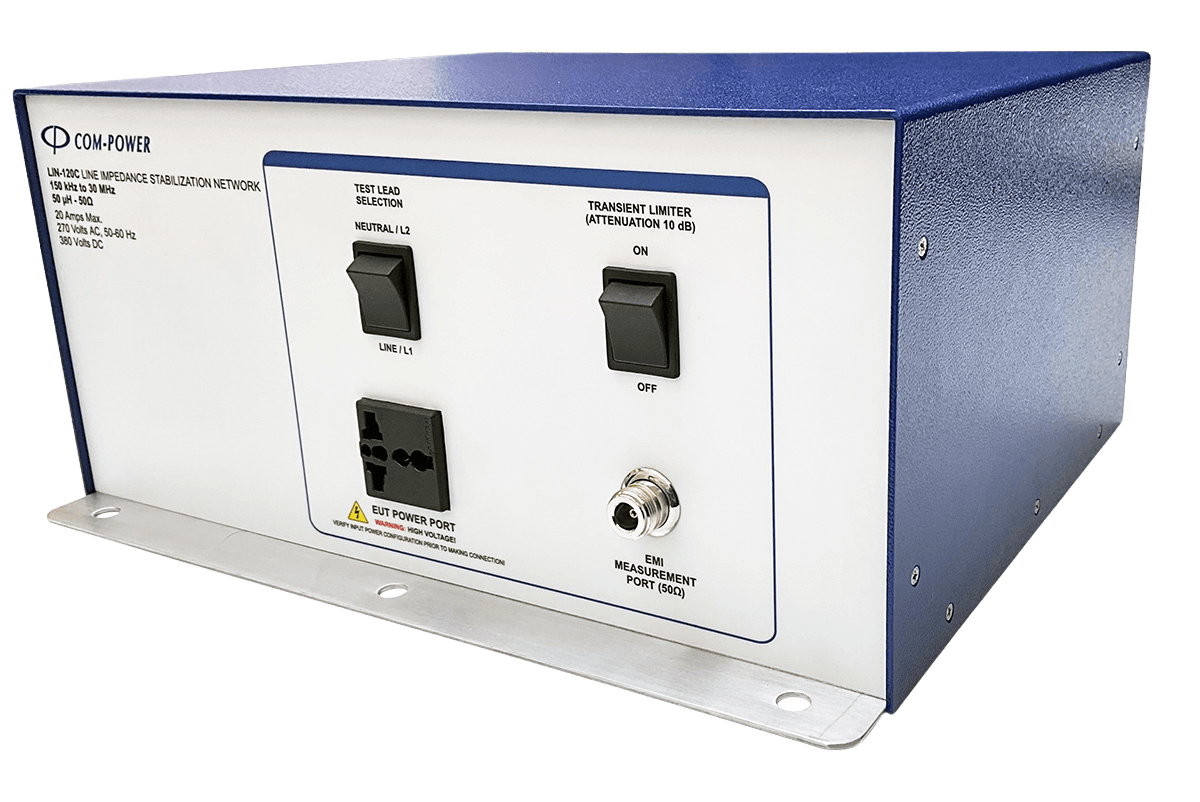

The Com-Power LIN-120C is a Line Impedance Stabilization Network (LISN) designed for power line conducted emissions testing from 150 kHz to 30 MHz. Compliant with CISPR 16-1-2 and ANSI C63.4, the LIN-120C provides a defined and stable measurement impedance while isolating the equipment under test (EUT) and measurement circuit from the power source. The dual-conductor network supports up to 20 A AC per line and includes a built-in transient limiter with 10 dB attenuation that can be bypassed when required. A universal EUT power receptacle accommodates multiple plug configurations, making the LIN-120C suitable for DC, single-phase, dual-phase, and three-phase power system configurations.
| Frequency Range | 150 kHz - 30 MHz |
| Voltage Rating | 270 Volts AC (rms), 380 Volts DC (Line to Ground) |
| Current Rating | 20 Amps AC (rms), 14 Amps DC |
| Type | 50Ω / 50 μH (CISPR), 50 μH (ANSI) |
| Insertion Loss | < 1 dB |
| Isolation | >40 dB |
| EUT Power Input Port | IEC C20 Receptacle |
| EUT Power Output Port | Universal Multi-Configuration AC Receptacle |
| RF Measurement Port | 50Ω - N-Type (female) |
| Dimensions (H)x(W)x(D) | 6.6” x 14.3” x 13” (16.8 x 36.3 x 33 cm) |
| Weight | 10 lbs (4.5 kg) |
| Operating Temperature | 40°F- 104°F (5°C - 40°C) |
- Fully compliant with CISPR 16-1-2 and ANSI C63.4
- Dual-conductor LISN
- Built-in transient limiter with 10 dB attenuation
- Transient limiter bypass switch
- Universal multi-configuration EUT power receptacle
- IEC C20 power input receptacle
- 50 Ω N-Type female RF measurement port
- Air-core inductors
- Supports DC, single-phase, dual-phase, and three-phase system configurations
- Individually calibrated for impedance, phase, isolation, and insertion loss
- ISO 17025 accredited calibration available upon request
- Power line conducted emissions testing
- EMC compliance testing
- CISPR 16-1-2 testing
- ANSI C63.4 testing
- Commercial product emissions testing
- CISPR 16-1-2
- ANSI C63.4
SKU: COMP-LIN-120C
