Eddyfi Pulsed Eddy Current Array (PECA) Probe

6-Channel Array | Up to 457mm Coverage

The Eddyfi PECA Probe is a pulsed eddy current array made for detecting corrosion under insulation and fireproofing. It features 457 mm single-pass coverage, 6 channels, and supports wall thickness measurements from 6–25 mm through up to 102 mm of insulation. The probe operates in grid or high-resolution dynamic mode and is compatible with SmartPULSE and CWT tools. It accommodates outer diameters from 152 mm to flat surfaces. The PECA Probe goes along with the Eddyfi Lyft, which serves as the data acquisition instrument for PECA inspections.

Product Info Related Products

Total Coverage	457 mm (18 in)
Number of Channels	6
Wall Thickness Range	6 – 25 mm (0.25 – 1.00 in)
Insulation/Coating Thickness (Liftoff)	0 – 102 mm (0 – 4 in)
Weather Jacket Thickness	Aluminum: 1 mm (0.04 in), Stainless Steel: 1.5 mm (0.06 in)
Outer Diameter Range	152 mm (6 in) to flat surfaces
Acquisition Modes	Grid, High-Resolution Dynamic
Compatibility	SmartPULSE™, CWT Tool
Encoder Resolution	16.04 counts/mm (407.44 counts/in)
Cable Length	5 m (16.4 ft)
Dimensions (W×H×D)	229 × 672 × 68 mm (9.0 × 26.5 × 2.7 in)
Weight	6.8 kg (15 lb)

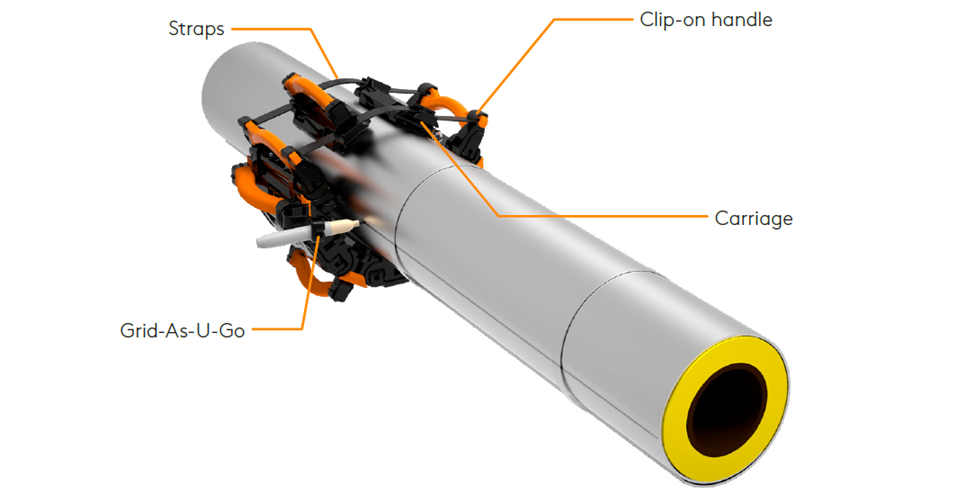

457mm (18in) single-pass coverage
Grid-As-U-Go™ for quick and easy gridding
Smooth acquisition over buckles and uneven surfaces
Integrated locking mechanism to adjust to ODs from 152mm (6in) up to flat surface
Two acquisition modes: grid and high-res dynamic
Compatible with SmartPULSE™
Compatible with the unique compensated wall thickness (CWT) tool

SKU: EDDY-PECA-6CH-MED-H05S-GDA
