Eddyfi PECA-HR Scab Kit

75mm Coverage

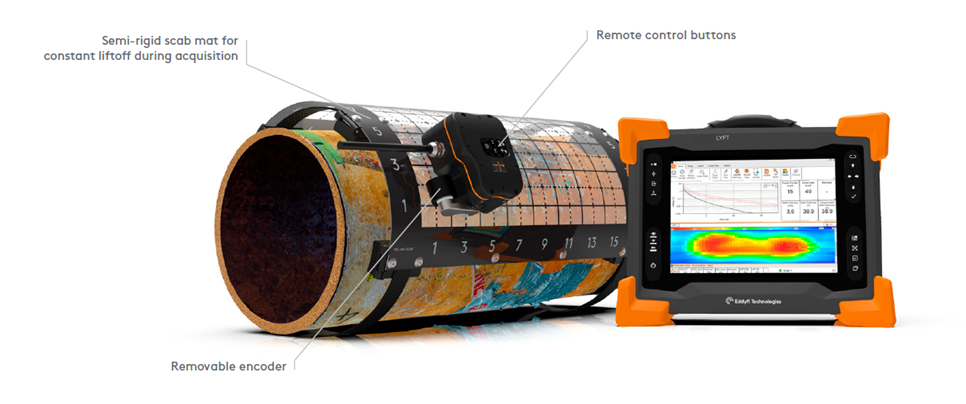

The Eddyfi PECA-HR Scab Kit is a high-resolution pulsed eddy current array system made to assess remaining wall thickness beneath corrosion scabs and blisters. It features 75 mm scan coverage, dual sensor coils with spatial triangulation, and supports dynamic or grid scanning without the need for surface preparation. The system inspects through up to 50 mm of insulation and captures high-quality C-scans in less than a minute. This kit is typically rented with the Eddyfi Lyft CUI Management System.

Product Info Related Products

Casing	Small array
Number of Channels	6 (3 dual sensors)
Total Coverage	75 mm (3 in)
Wall Thickness Range	3–19 mm (0.12–0.75 in)
Insulation/Coating Thickness	0–50 mm (0–2 in)
Weather Jacket Support	Not supported
Outer Diameter Range	152 mm (6 in) to flat surfaces
Encoder Resolution	16.04 counts/mm (407.44 counts/in)
Cable Length	5 m (16.4 ft)
Dimensions (W×H×D)	112 × 66 × 87 mm (4.4 × 2.6 × 3.4 in)
Weight	0.9 kg (2 lb)
