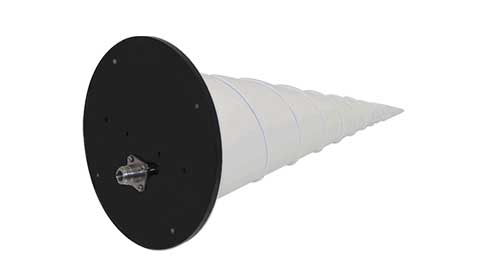

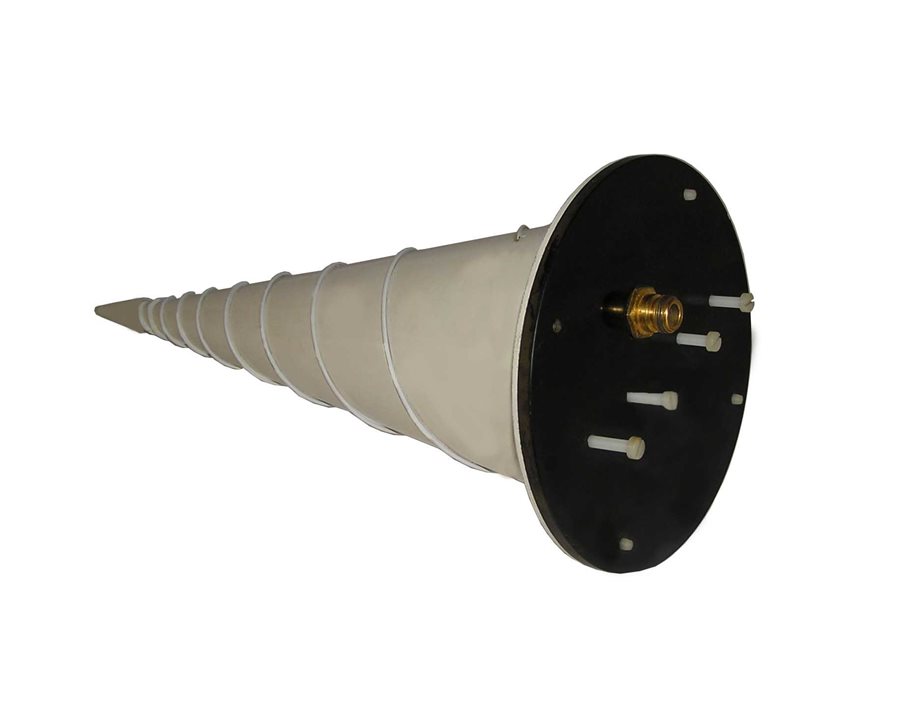

EMCO 3102 Conical Log Spiral | 1 GHz - 10 GHz
The EMCO/ETS-Lindgren 3102 stands out as a meticulously crafted conical log spiral antenna, tailored for the 1 GHz to 10 GHz frequency spectrum. The device is well-suited for a range of testing protocols, including MIL-STD and SAE. This antenna's design incorporates a robust tripod mount, a durable aluminum base, and Type N (F) connectors, ensuring consistent performance and seamless integration in a variety of EMC testing environments.
| Frequency | 1 GHz - 10 GHz |
| VSWR: | 1.6:1 |
| Max. Continuous Power | 50 W |
| Peak Power | 100 W |
| Impedance (Nominal) | 50 Ω |
| Polarization | Circular |
| Connectors | Type N (F) |
| Pattern Type | Directional |
| Polarization | Circular |
| Depth | 15 in |
| Diameter | 5 in |
| Weight | 8 lbs |
- Compact Size
- Extremely Low VSWR
- Circular Polarization
- Individually Calibrated
- MIL-STD-1541
- SAE J1113 RI
SKU: EMCO-3102
