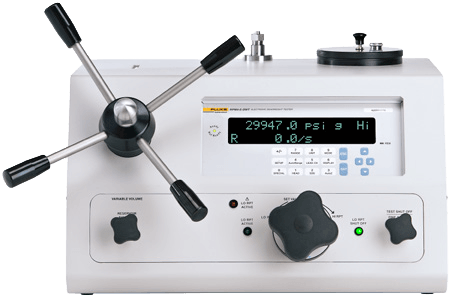

Fluke Calibration 6532-140M E-DWT

Electronic Deadweight Tester Kit | 140MPa

The Fluke Calibration 6532-140M E-DWT Electronic Deadweight Tester Kit is a hydraulic pressure calibration system designed for high-accuracy pressure calibration applications up to 140 MPa (20,000 psi). The system combines traditional deadweight tester performance with digital measurement capabilities, eliminating the need for physical weights while providing precise pressure generation and control. It is suitable for calibration laboratories, manufacturing environments, and field service applications.

Product Info Related Products

Pressure Range	1.4 - 140 MPa (200 - 20,000 psi)
Accuracy Coverage	1% - 100% of Device Full Scale
One-Year Measurement Uncertainty	±0.02% of Reading
Two-Year Measurement Uncertainty	±0.025% of Reading
Precision	±0.018% of Reading
Resolution	0.01% of Active Range (Default)
Operating Temperature Range	10°C - 40°C (50°F - 104°F)
Storage Temperature Range	-20°C - 70°C (-4°F - 158°F)
Operating Humidity	0% - 70% RH
Storage Humidity	0% - 100% RH
Reservoir Capacity	300 cc (18 in³)
Variable Volume Displacement	3 cc (0.18 in³)
Filling and Priming Pump Displacement	3.7 cc (0.23 in³)
Pressure Connection	DH500 Female
Communication Interface	RS-232 (COM1, COM2)
Power Requirements	12 VDC, 1.2 A; 100 - 240 VAC, 50/60 Hz
Dimensions	41.4 cm W × 37.1 cm D × 26.9 cm H (16.3 × 14.6 × 10.6 in)
Weight	14 kg (30 lb)

Pressure range from 1.4 to 140 MPa (200 to 20,000 psi)
±0.02% of reading one-year measurement uncertainty
Dual quartz reference pressure transducers provide coverage from 1% to 100% of full scale
Hydraulic pressure generation and fine control up to 140 MPa
AutoTest™, AutoRange, onboard data capture, and overpressure protection
Compatible with water, mineral oil, and other calibration fluids
Quick-mount test station eliminates the need for PTFE tape or wrenches
RS-232 communication interface for remote operation and data transfer
Optional battery pack supports field operation
Includes vacuum fill kit and test station adapters
