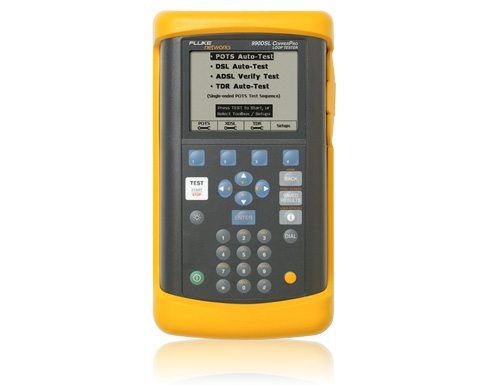

Rent & Buy Fluke 990DSL CopperPro Series II

Loop Tester with Wideband & TDR

The Fluke 990DSL CopperPro Series II offers a broad range of Plain Old Telephone Services (POTS) troubleshooting, fault location, and line qualification capabilities. The added wideband/TDR option includes high frequency transmission testing and qualification functions (ADSL, HDSL, HDSL2, HDSL4, ISDN, T1, E1, and DDS) as well as precise fault location and analysis.

The CopperPro Series II was also previously manufactured under the TesCom product line.

EXFO MaxTester 635G Copper & DSL Test Set

Gfast, VDSL2‑35b, ADSL2+ support
Automated copper diagnostics
1.2GB Memory

Viavi OneExpert DSL ONX-580 Modular Platform

Test G.fast and ADSL2+/VDSL2 including bonded and vectored pairs, copper, POTS, and coax/HPNA
A multi-touch, friendly user interface leverages user experience from smartphones and tablets
Multiple options for one-button speed testing including Ookla and TrueSpeed™

EXFO MaxTester 605 Copper Test Set

Automates closeout testing thanks to test script with configurable pass/fail indication
Fast access to key measurements from the copper main menu
Easy-to-use time-domain reflectometer (TDR) ensures any technician can locate copper faults accurately

EXFO MaxTester 630G Gfast & Broadband Network Tester

G.fast with backwards compatibility to VDSL2 and ADSL2+, all-in-one test tool
VDSL2 and ADSL2+ bonding enables operators to increase rates and/or reach to subscribers
Spectrally compatible VDSL2 35b support

Viavi SC Home v3 Tester

Coax Map feature and the Noise Immunity Test to assess quality and to troubleshoot issues in a coax network
Active ID can delineate multiple runs of coax in the building even through coaxial splitters and can use the integrated wiring tools to qualify twisted pairs, including Cat3, Cat5, Cat5e, and Cat6
Fully functional built-in butt-set that can test POTS voice delivery along with wiring identification and toning to locate and identify cables

AC voltage	0 – 220 V, 60 Hz (1% accuracy ±0.5 V)
DC voltage	0 – 150 V (1% accuracy ±0.5 V) 150 – 240 V (2% accuracy) 240 – 300 V (3% accuracy)
DC loop current (430 W)	0 – 120 mA (2% accuracy ±0.3 mA)
Opens	0 – 3000 ft (1% accuracy ±5 ft) 3 – 5 kft (3% accuracy) 50 – 80 kft (5% accuracy)
Splits range	0 – 50 kft
Load coils (distance to first)	0 – 12,000 ft (10% accuracy ± 500 ft)
TDR Specifications
Impedance	100 Ω
Pulse width	20 ns, 100 ns, 500 ns, 1000 ns, 2500 ns, 5000 ns
VOP selection	0.300 – 0.999
Range (VOP = 0.64)	30,000 ft
Range selection	10 ft – 48 kft (Auto)
Horizontal resolution	0.5 – 156 ft (0.1524 – 47.5m)
