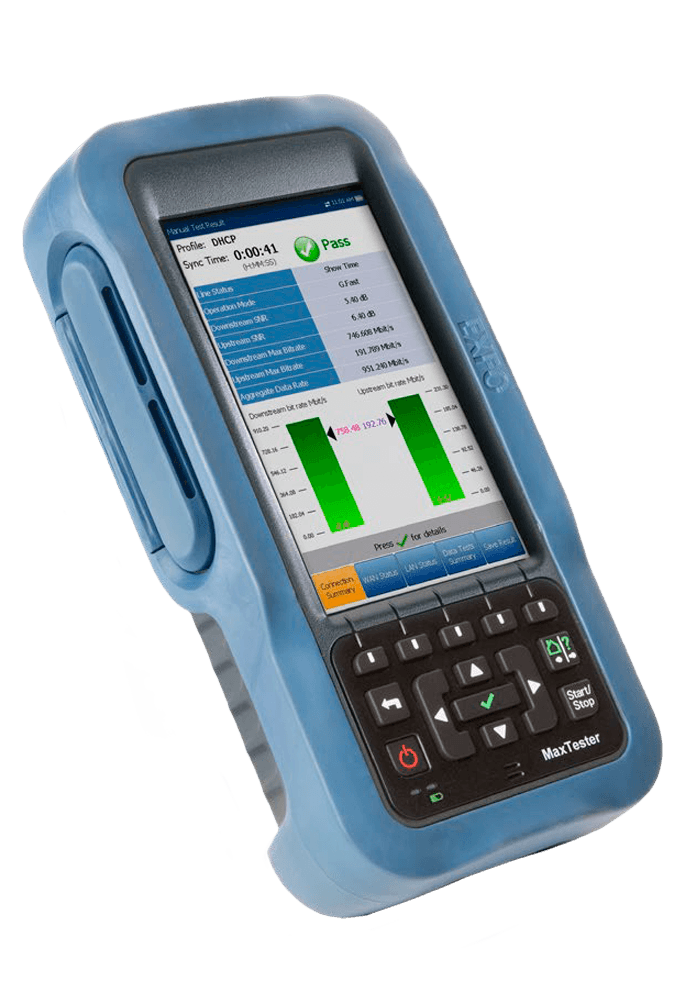

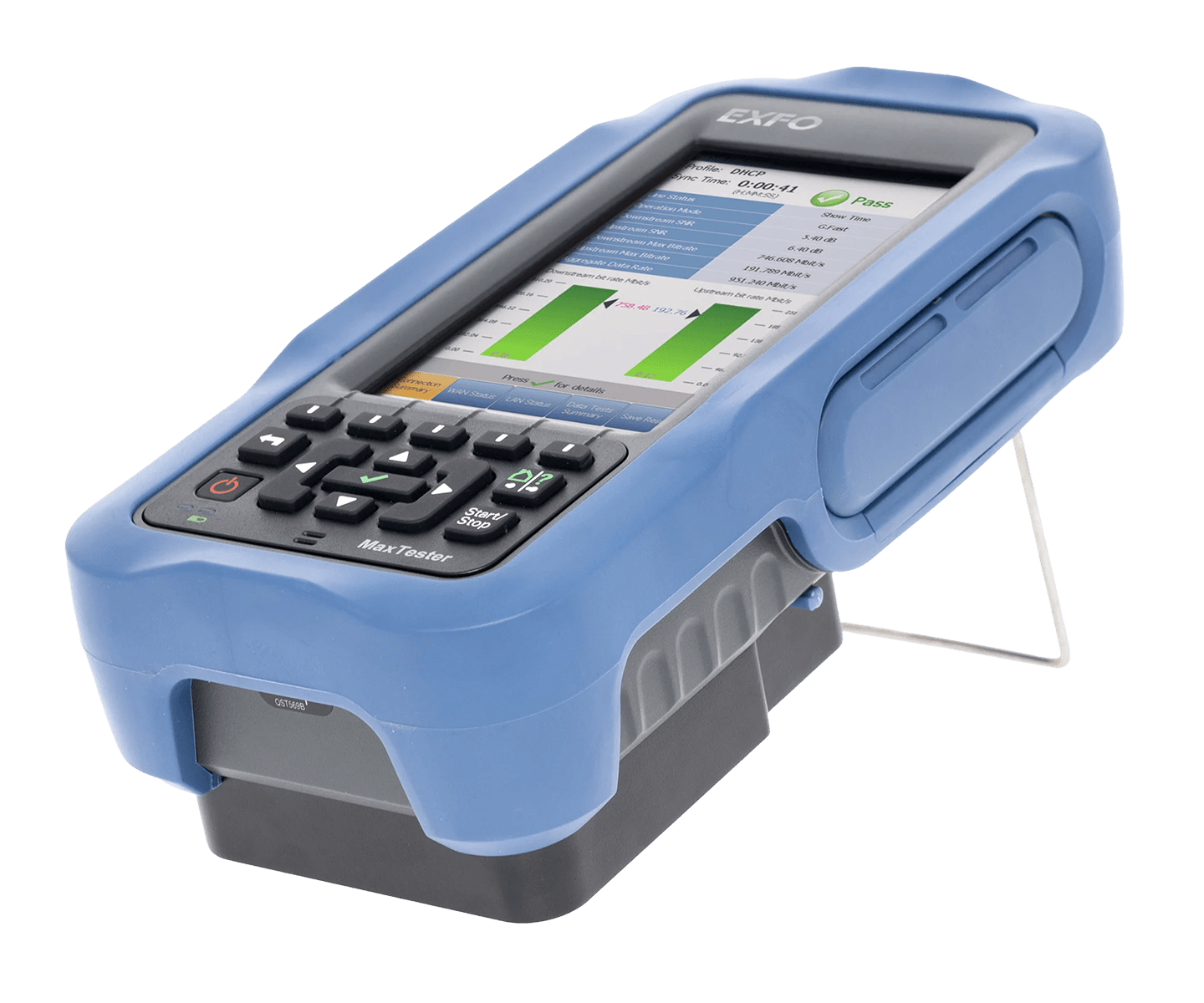

EXFO MaxTester 635G Copper & DSL Test Set
The EXFO MaxTester 635G is a handheld copper and ultra‑broadband test set made for the installation and maintenance of ADSL2+, VDSL2 (including 35b), bonded DSL, and Gfast networks. It combines copper qualification, SmartR™ automated fault diagnostics, DSL/Gfast analysis, and throughput testing using Speedtest by Ookla and iPerf3. The tester supports multiplay service validation (Internet, IPTV, VoIP), far‑end testing, and cloud‑based result management via EXFO Connect, all in an IP54‑rated portable platform
| Supported Access Technologies | Gfast, VDSL2 (including 35b), ADSL2+ |
| Copper & DSL Testing | Copper qualification, DSL and Gfast analysis |
| Smart Diagnostics | SmartR™ Pair Detective and Fault Mapper |
| Bonding Support | Bonded VDSL2 and bonded ADSL2+ |
| Throughput Testing | Speedtest® by Ookla®, iPerf3, HTTP, FTP |
| Multiplay Validation | Internet, IPTV, VoIP (options dependent) |
| Ethernet Interfaces | 10/100/1000 Mb/s LAN and WAN |
| Display | 6-inch color touchscreen (800 × 480) |
| Ingress Protection | Designed to comply with IP54 |
| Battery & Portability | Rechargeable Li-polymer battery; handheld form factor |
- Gfast with backwards compatibility to VDSL2 and ADSL2+ with one test tool
- Compatible with EXFO Connect for cloud-based test asset management
- Spectrally compatible VDSL2 35b support and, VDSL2 and ADSL2+ bonding
- Adherence to existing methods and procedures is easy with single-ended testing or via testing to a far-end device (FED), including high-voltage stressed balance testing

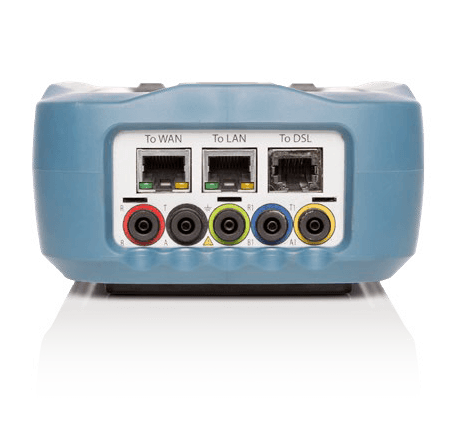

- High resolution 6-inch touchscreen with dual 1 GigE ports and single test lead connection supporting both Gfast/DSL and copper testing to 35 MHz bandwidth
- Designed to face the challenges of the outside plant environment, with an IEC IP54 rating
SKU: EXFO-MAXTESTER-635G
