Rent Fluke DSP 2000 Cat-5 Cable Tester
Enlarge Image

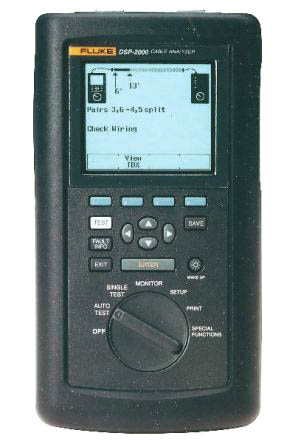

Fluke Networks DSP2000
Manual DSP2000 Datasheet Supplemental Document
The Fluke DSP 2000 has been replaced by the Fluke DSX-5000.

View the DSX-5000
Fluke Networks DSP2000 Features
  • Delivers TSB-67 Accuracy Level II for Basic Link and Channel
  • Provides auto-diagnostics of cabling faults in graphical and text representations
  • Tests NEXT from both ends to 155 MHz
  • Provides fast test times: completes test of a 4-pair Cat 5 cable in less than 20 seconds
  • Stores 1,150 TIA TSB-67 test results and up to 3000 fiber test results
  • Monitors traffic on 10BASE-T and 100BASE-TX networks
  • Tests a wide variety of LAN cabling systems: UTP, FTP, STP (IBM type 1,2,6,9) Coax

Test Fiber Optic Cables

When paired with the optional Fluke DSP-FTK Fiber Test Kit, the DSP-2000 detects bad connections, bad splices, broken fibers, and loss of power from bends and fiber-type mismatches.

DSP-LINK Software

Windows based DSP-LINK software brings "point and click" simplicity to the task of transferring data or updating your DSP-2000.

Fluke Networks DSP2000 Specs
  • Test Standards:
    TIA Cat 3, 4 and 5 Basic Link or Channel
    ISO 11801/EN 50173 Class A, B, C or D
    IEEE 10Base5, 10Base2, or 10base-T
    IEEE Token Ring 4 Mbps or 16 Mbps
    IEEE 100Base-TX, 100Base-T4
    IEEE 802.12 (100VG-AnyLan) 4-UTP or 2-STP
    Aus/Nz Class C, D Basic Link or Channel
  • Supported Tests:
    Wire Map
    Length, Propagation Delay, Delay Skew
    NEXT, NEXT @ Remote
    Power Sum NEXT, PSNEXT @ Remote
    Attenuation-to-Crosstalk Ratio (ACR), ACR @ Remote
    Characteristic Impedance
    DC Loop Resistance
    Return Loss (RL), RL @ Remote
  • Cable Tone Generator
  • Test connections: Two, RJ-45
  • Rechargeable NiCad battery with 10-12 hours typical battery life
  • Weight: 3.25 lb
