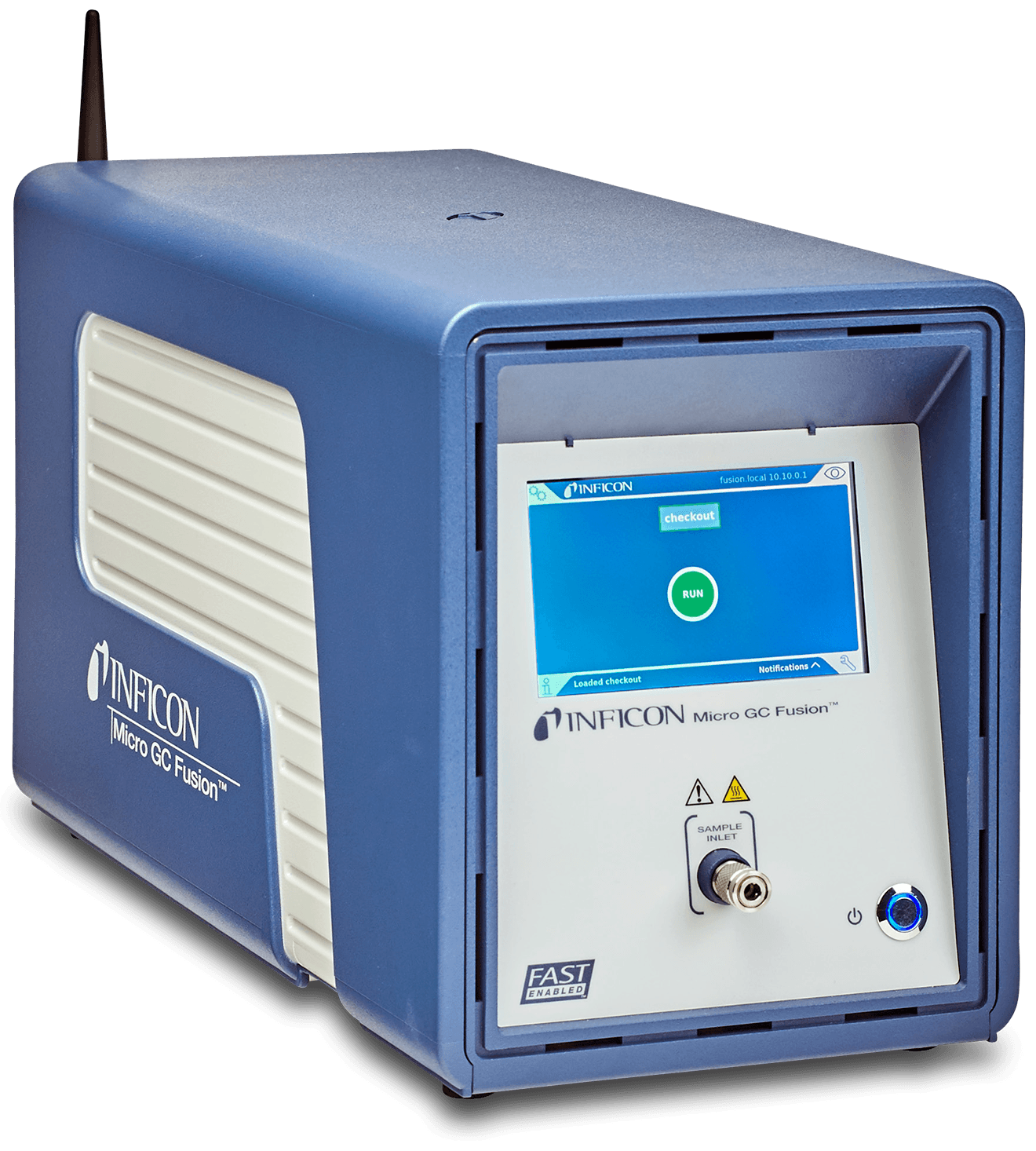

INFICON Micro GC Fusion Gas Analyzer

Gas Chromatograph for Syngas & Hydrocarbon Analysis

The INFICON Micro GC Fusion Gas Analyzer is a modular micro gas chromatograph that supports up to four independently programmable GC modules for parallel analysis of permanent gases, hydrocarbons, VOCs, refinery gases, natural gas, syngas, biogas, and specialty gas streams. It features resistively heated GC columns with temperature ramping up to 300°C/min, MEMS μTCD detection with sensitivity down to 1 ppm, and FAST (Fusion Auto-Sensing Technology) for measuring both high-concentration and low-ppm compounds in a single run. The analyzer offers optional integrated sample conditioning for gas streams up to 1000 psi and a license-free web-based interface.

Its transportable platform supports laboratory, field, and online applications including natural gas and H₂S measurement, hydrocarbon and refinery gas analysis, VOC monitoring, landfill and biogas testing, transformer oil fault gas analysis, mining gas monitoring, catalyst research, and mud logging operations.

Product Info Related Products

Detection Limit	1 ppm (n-Hexane, WCOT columns)
Temperature Ramping	Up to 300°C/min
Maximum Column Temperature	250°C
Detector Type	MEMS μTCD (Thermal Conductivity Detector)
Linear Dynamic Range	10⁶ ±10%
Retention Time Repeatability	≤0.1% RSD
Peak Area Repeatability	≤1% RSD
Injector Types	Variable Volume, Variable Large Volume, Backflush, Fixed Volume
Carrier Gases	Helium, Hydrogen, Nitrogen, Argon
Column Types	WCOT and PLOT
Communications	Wi‑Fi (802.11a/g/n), Ethernet (RJ‑45)
Control Software	License-free Web-Based Interface
Operating Temperature	0–50°C
Humidity Range	5–95% RH, non-condensing
Power Input	100–240 VAC, 50–60 Hz
Dimensions (2-Module Chassis)	46.2 × 19.6 × 25.4 cm
Weight (2-Module Chassis)	6.2 kg (13.6 lb)

Get rapid, reliable results in as little as 1-3 minutes, enabling critical decision-making without delay.
Lightweight and portable
Control the instrument from any device—computer, tablet, or smartphone—using a license-free, web-based interface.
Embedded Wi-Fi and intuitive front-panel display provide real-time status updates and results.
Modular architecture and optional integrated sample conditioning let users tailor the system for specific applications.
