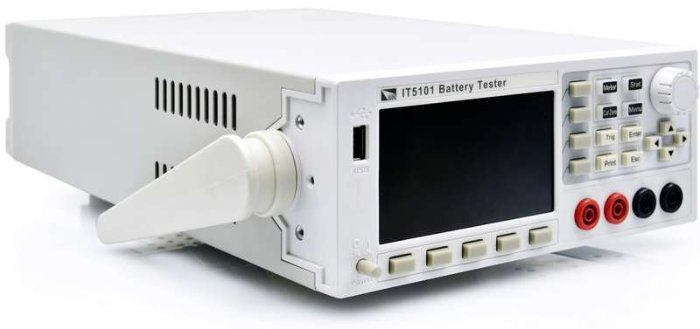

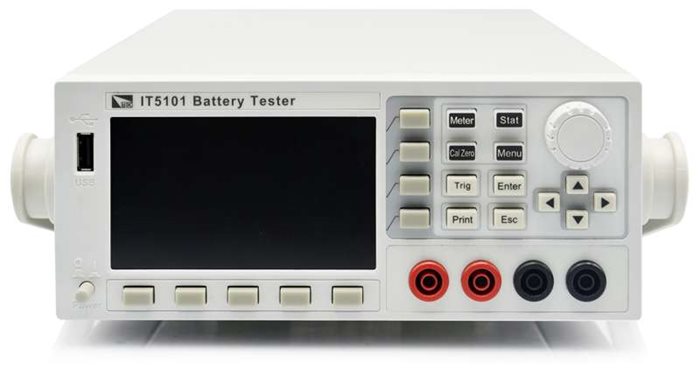

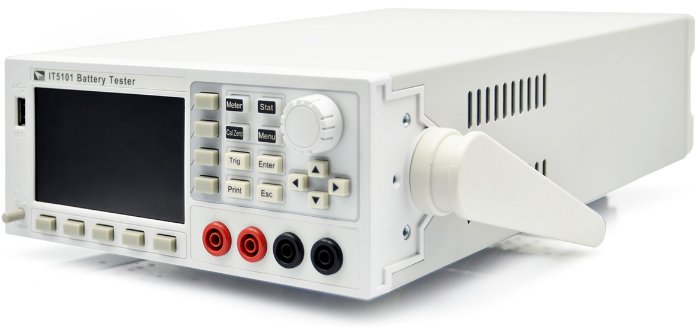

ITECH IT5101 Internal Battery Resistance Meter

3mΩ - 3000Ω | -300... +300V Output

The ITECH IT5101 Internal Battery Resistance Meter tests internal resistance and voltage at the same time. This device provides high precision, high resolution, and high speed testing on a variety of objects such as cellphone lithium batteries, electric vehicle batteries, and other batteries that require inspection and sorting. It can set its resistance resolution down to 0.1μΩ and offers a voltage resolution of 10μV.

Product Info Related Products

Measurement Range
Voltage:	Range:			-6V ~ +6V	-60V ~ +60V	-300V ~ +300V
	Resolution:			10μV	0.1mV	1mV
	Accuracy:			±(0.01% + 0.01%FS)
	Temperature Coefficient:			±(0.001% + 0.001%FS)/°C
Resistance:	Range:	3mΩ	Resolution:	0.1μΩ	Testing current:	100mA
	Range:	30mΩ	Resolution:	1μΩ	Testing current:	100mA
	Range:	300mΩ	Resolution:	10μΩ	Testing current:	10mA
	Range:	3Ω	Resolution:	0.1mΩ	Testing current:	1mA
	Range:	30Ω	Resolution:	1mΩ	Testing current:	100μA
	Range:	300Ω	Resolution:	10mΩ	Testing current:	10μA
	Range:	3000Ω	Resolution:	0.1Ω	Testing current:	10μA
	Accuracy:	±(0.4%+0.05%FS)
	Accuracy:	±(0.04% + 0.1%FS), (3mΩ range)
	Temperature coefficient:	±(0.04% + 0.005%FS)/°C
	Temperature coefficient:	±(0.04% + 0.01%FS)/°C, (3mΩ range)
	Testing current:	1kHz ± 0.2Hz

Support resistance & voltage simultaneously test and display
Measure accuracy of battery internal resistance: 0.4%
Measurement accuracy of battery voltage: 0.01%
Maximum voltage measurement resolution: 10μV
Automatically judge whether test results exceed set specifications based on the maximum/minimum limitation of test parameters
Built-in USB, LAN interfaces
Select multi-measurement speed based on requirements
Statistics calculation and data USB storage function
Software monitoring via computer
Software-based calibration
4.3 inch LCD screen

SKU: ITEC-IT5101

ITECH IT5101 Internal Battery Resistance Meter

3mΩ - 3000Ω | -300... +300V Output

Related Products

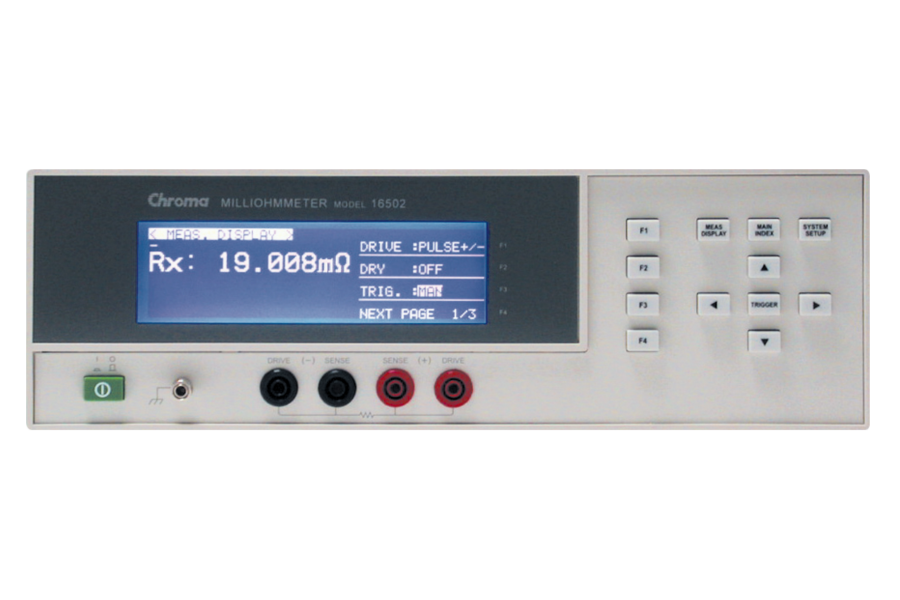

Chroma 16502 Milliohm Meter

Keysight 4338A Milliohmmeter

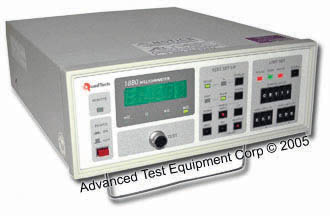

Quadtech 1880 Milliohmmeter
