Chroma 16502 Milliohm Meter

0.001mΩ - 1.9999MΩ

The Chroma 16502 Milliohm Meter measures low resistance from 0.001mΩ to 1.9999MΩ with ±0.05% accuracy using a Kelvin 4-wire method to eliminate lead resistance errors. It features pulsed, DC, and dry-circuit test modes, along with temperature compensation for precise measurements. The meter supports fast measurement speeds (65ms), programmable pass/fail evaluations, and automation interfaces (RS-232, optional GPIB & Handler) for production and quality control applications. It is used for contact resistance, coil winding, PCB trace, and conductive material testing in electronics, automotive, and industrial applications.

Product Info Related Products

Measurement Range	0.001mΩ - 1.9999MΩ
Basic Accuracy	±0.05%
Test Modes	Pulsed, DC, Dry-Circuit
Temperature Compensation	Yes (PT100/PT500 Sensors)
Test Current	1A (20mΩ range), 100mA (200mΩ range), 1µA (2MΩ range)
Measurement Speed	65ms (Fast), 150ms (Medium), 650ms (Slow)

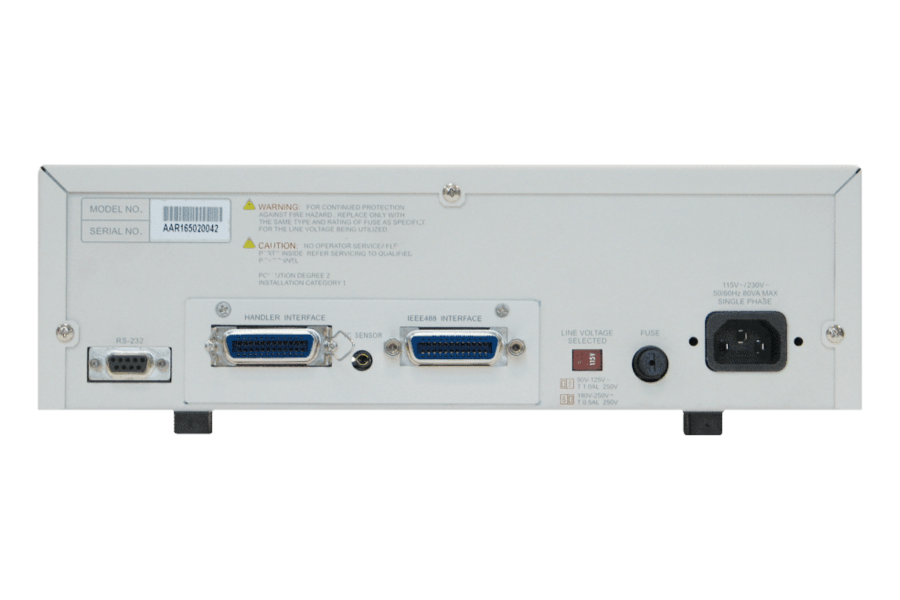

Interfaces	RS-232 (Standard), Optional GPIB & Handler
Power Supply	90-264 VAC, 47-63Hz
Display	240 x 64 dot-matrix LCD
Dimensions	100 x 320 x 346 mm (3.94 x 12.6 x 13.62 inches)
Weight	4.2 kg (9.25 lbs)

Pulsed test current output mode is used to reduce thermal EMFs affection on milliohm measurement
DC test current output mode is used to fasten measurement speed for inductive DUT
Dry-circuit test current output mode (limited Max. 20mV) is used to measure such contact resistances where the maximum open-circuit voltage must be limited to 50mV
Temperature correction (TC function) regardless of material or temperature
Useful temperature conversion function for motor/ coil evaluation
4 channels R scan with balance check function for fan motor (combined with A165017 option)
0.001mΩ~1.9999MΩ wide measurement range with 4½ digits resolution
Standard RS-232 interface
Optional GPIB & Handler interface
Bin-sorting function
Comparator and pass/fail alarming beeper function
Large LCD display (240 x 64 dot-matrix)
Friendly user interface
LabView® Driver

Production testing of contact resistance of switches, relays, connectors, cables, and other low Resistance Devices
Production testing of various inductive components (coil, choke, and transformer winding etc.)
Testing of low value resistors, fuses, squibs, and heating elements
Winding resistance of motors, transformers, solenoids, and ballasts
Conductivity evaluation in product design
Incoming inspection and quality assurance testing

SKU: CHRO-16502

Chroma 16502 Milliohm Meter

0.001mΩ - 1.9999MΩ
