Kaelus 8T8R Beamforming Antenna
The Kaelus 8T8R is a four-column beamforming antenna with a frequency of 3300 - 4200 MHz. Made for the 5G era, the Kaelus 8T8R beamforming antenna has an integrated single RET control and a synchronized tilt for all four columns. Additionally, the Kaelus 8T8R beamforming antenna includes a calibration port. The advanced technology of the Kaelus 8T8R beamforming antenna improves the overall user experience and delivers ultra-fast 5G speeds.

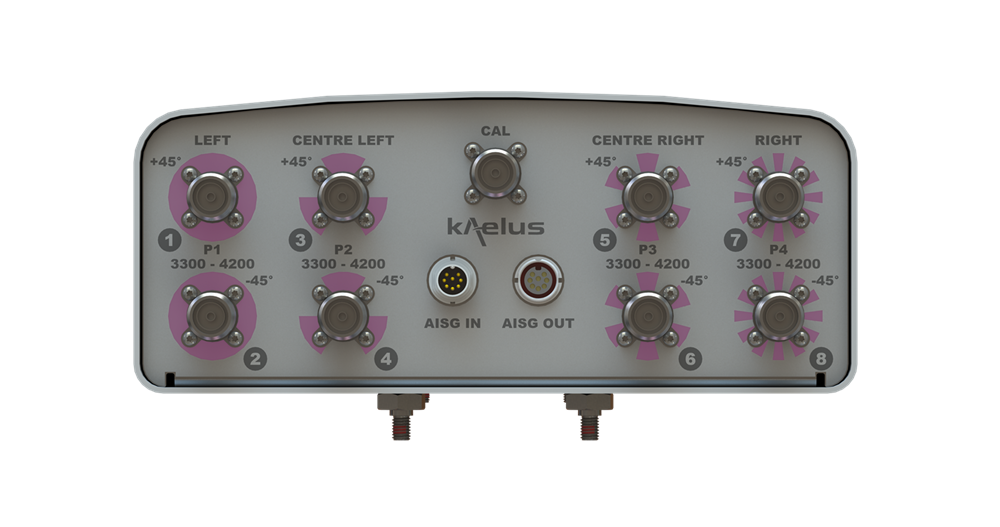

| Connector Type | 4.3-10 Female | MQ4 / MQ5 |
| Connector Quantity | 8 + 1 CAL |
| Connector Position | Bottom |
| Windload, Calculation* [mph|km/h] | 93.2 | 150 |
| Windload, Frontal [lbf|N] | 59.1 | 263 |
| Windload, Lateral [lbf|N] | 9.3 | 41.2 |
| Survival Wind Speed [mph|km/h] | 124.3 | 200 |
| Lightning Protection | DC Ground |
| General | P1 | P2 | P3 | P4 |
| Frequency Range | 3300-4200 | 3300-4200 | 3300-4200 | 3300-4200 |
| Gain Over All Tilts [dBi] | 15.5 | 15.5 | 15.5 | 15.5 |
| Polarization | X | X | X | X |
| Azimuth Beamwidth [º] | 90 | 90 | 90 | 90 |
| Electrical Downtilt [º] | 2-12 | 2-12 | 2-12 | 2-12 |
| Ports Per Band | 2 | 2 | 2 | 2 |
- 8x Ports
- 4 column antenna
SKU: KAEL-PBOQBU01
