Keysight 11970A Waveguide Harmonic Mixer, 26.5 -40 GHz

HP/Agilent 11970A Waveguide Harmonic Mixer up to 40 GHz
Enlarge Image
Keysight 11970A
Request Quote Print Page
Manual Datasheet Specifications

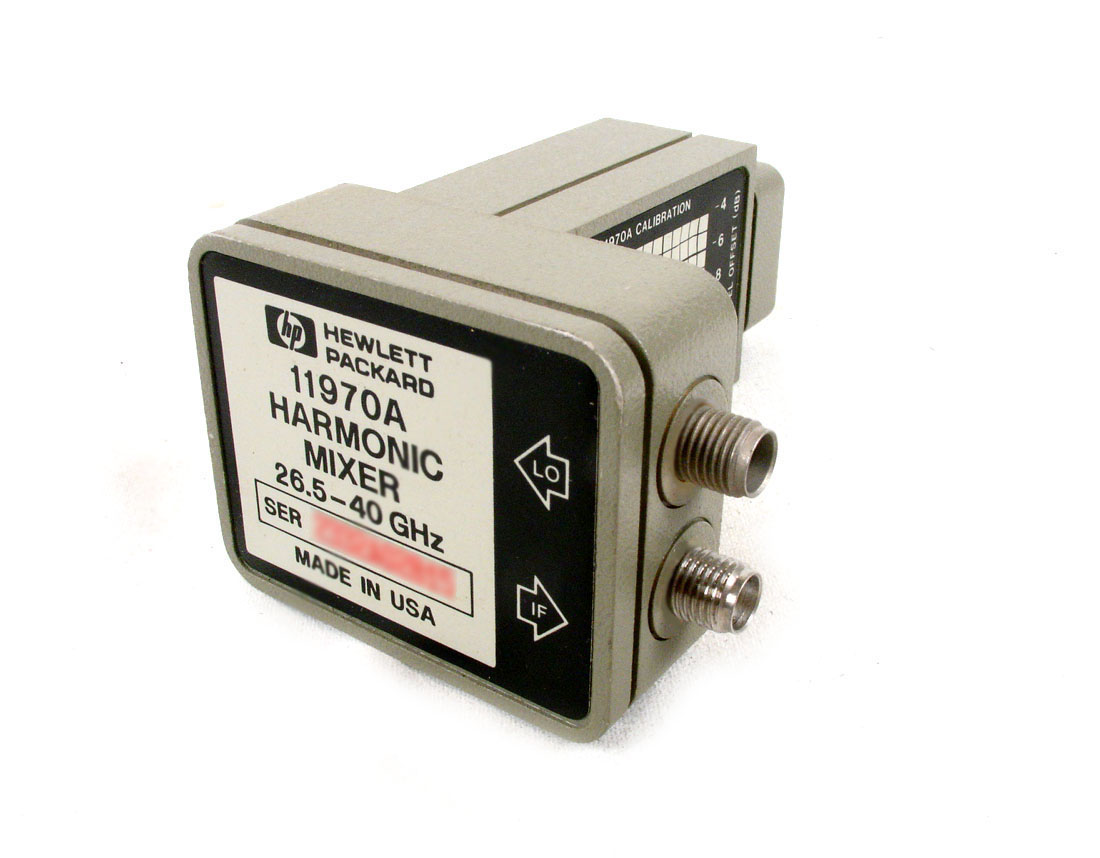

The Keysight 11970A waveguide mixer is a general-purpose harmonic mixer employing a dual-diode design to achieve flat frequency response and low conversion loss. These are achieved without external dc bias or tuning stubs. Manual operation and computer-controlled hardware operation are simplified because mixer bias and tuning adjustment are not required.


The 11970A extends the frequency range of the Keysight E4440A/46A/48A PSA Series high-performance spectrum analyzers, the E4407B ESA-E Series portable spectrum analyzer, the Keysight 8560 E/EC-Series portable spectrum analyzers, the 8566B spectrum analyzer (used with the 11975A amplifier), and the 70000 modular measurement system (used with the Keysight 70907A/B external mixer interface modules).


Keysight 11970A Features
  • Flat frequency response
  • Low conversion loss
  • No bias or tuning adjustments
  • 100 mW safe input level
