Keysight 16500B Logic Analyzer System Mainframe

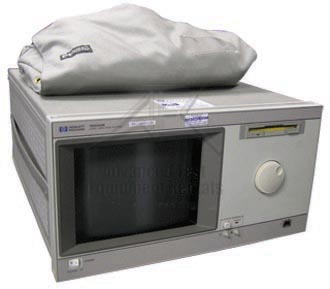

HP/Agilent 16500B Logic Analysis System Mainframe
Enlarge Image
HP/Agilent 16500B Logic Analysis System Mainframe HP/Agilent 16500B Logic Analysis System Mainframe HP/Agilent 16500B Logic Analysis System Mainframe
Keysight 16500B
Request Quote Print Page
Manual Datasheet

Features:

  • Systems configured to exact requirement
  • Up to 1000 channels of 100 MHz state OR
  • Up to 640 channels of 100 MHz timing with 1Mb/channel depth
  • All data is time correlated
  • Built-in hard drive with software preloaded
  • Touch screen, keyboard & mouse user interfaces



Available Modules:

  • 16510B 80 Channel 35 MHz State/100 MHz Timing Card
  • 16517A 16 Channel 4GHz Timing/1 GHz State Card
  • 16518A 16 Channel 4GHz Timing/1 GHz State Expander Card
  • 16530A 400MSa/s Oscilloscope Time-Base Card
  • 16531A 2 Channel 400 MSa/s Oscilloscope Acquisition Card
  • 16532A 2 Channel 1GSa/s Oscilloscope Acquisition Card
  • 16540A 16 Channel 100 MHz State/Timing Master Card
  • 16541A 48 Channel 100 MHz State/Timing Expansion Card
  • 16550A 102 Channel 100 MHz State/500 MHz Timing Card
  • More models available upon request.
