Keysight 35660A Dual-Channel Dynamic Signal Analyzer

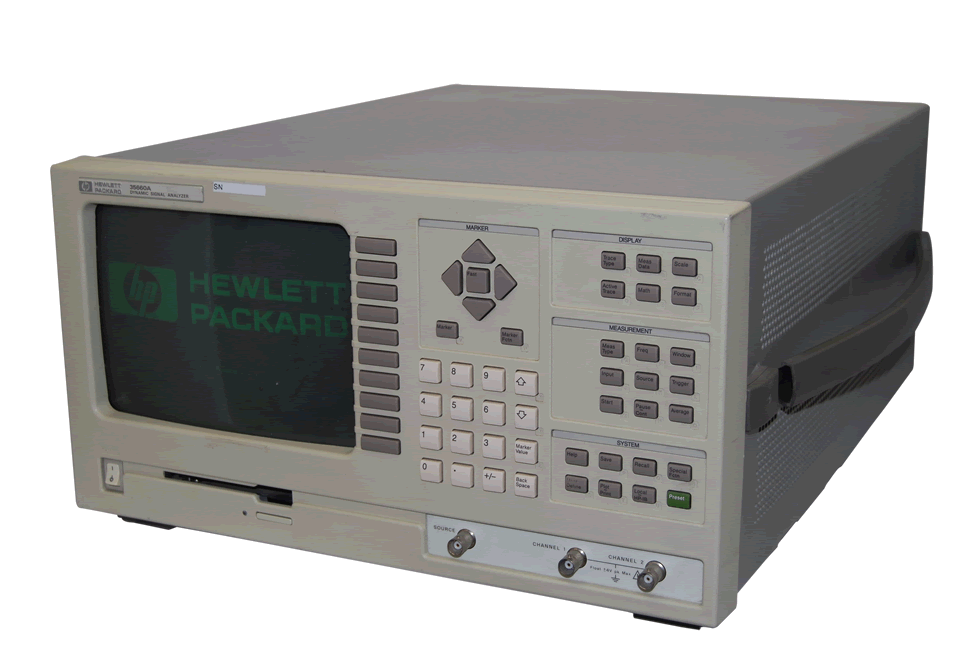

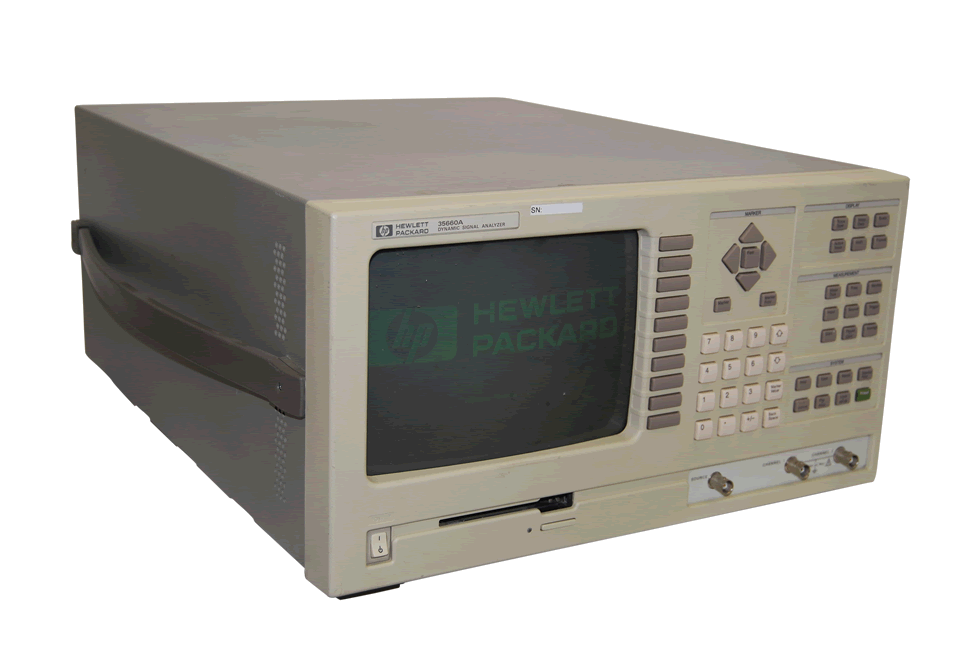

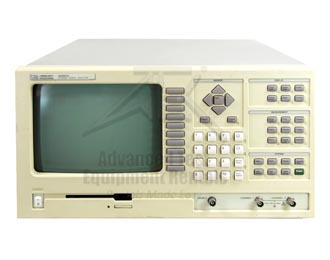

HP/Agilent 35660A Dual-Channel Dynamic Signal Analyzer
Enlarge Image
HP/Agilent 35660A Dual-Channel Dynamic Signal Analyzer HP/Agilent 35660A Dual-Channel Dynamic Signal Analyzer
Keysight 35660A
Request Quote Print Page
Datasheet
Keysight 35660A Dynamic Signal Analyzer is a FFT-based instrument that provides spectrum and network measurements in electronics, mechanical test, acoustics, and other low frequency application areas.

Keysight 35660A Features
  • 70dB dynamic range
  • ± 0.5dB amplitude accuracy
  • ± 0.4 dB and ± 1.0 degree channel match
  • Frequency accuracy of ± 30 ppm
  • built-in 3.5 inch disc drive
Keysight 35660A Specs
  • Frequency range
    Channel 1: 488µHz to 102.4kHz, single channel mode
    Channel 1 and 2: 244µHz to 51.2kHz, dual channel mode
  • Accuracy: ± 0.003% of frequency reading
  • Resolution: Span/400
  • Spans
    Single Channel: min - 195.3mHz; max - 102.4kHz
    Dual Channel: min - 97.6mHz; max - 51.2kHz
  • Window Functions: Flat, Top, Hann, Uniform, Force, Exponential
  • Typical Real-time Bandwidth: (random noise source off)
  •
  •   Single Channel Dual Channel
    Averaging Off 800Hz 400Hz
    Fast Averaging 3.2kHz 1.6kHz
