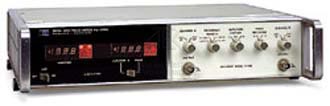

HP/Agilent 3575A Gain/Phase Meter 1 Hz-13 MHz
Enlarge Image
Keysight 3575A
Request Quote Print Page
Manual Supplemental Document
1Hz-13MHz, 200µV-20V Level Gain Phase Meter

Keysight 3575A Features
  • Magnitude, Phase
  • Broadband Measurements
  • Gain/Loss, Transfer Functions
Keysight 3575A Specs
Inputs
  • Frequency: 1 Hz to 13 MHz
  • Level: 200µV rms to 20V rms
  • No. Channels: 2
  • Impedance: 1 M ohms 30 pF
  • Protection: ±40V dc, 20V rms

Analog Outputs
  • Phase: 10mV/degree
  • Amplitude: 10mV/dB or dBV
  • Output Impedance: 1 k ohms

Amplitude
  • Amplitude Functions: A dBV, B dBV or B/A dB
  • Range: A dBV, B dBV: -74 dBV to +26 dBV (in two ranges). B/A dB: -100 to +100 dB
  • Resolution: 0.1 dB

Phase
  • Range: ±180° with 12° of overrange
  • Resolution: 0.1°
