5517A Laser Head, 1.5 to 2.0 MHz


Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery

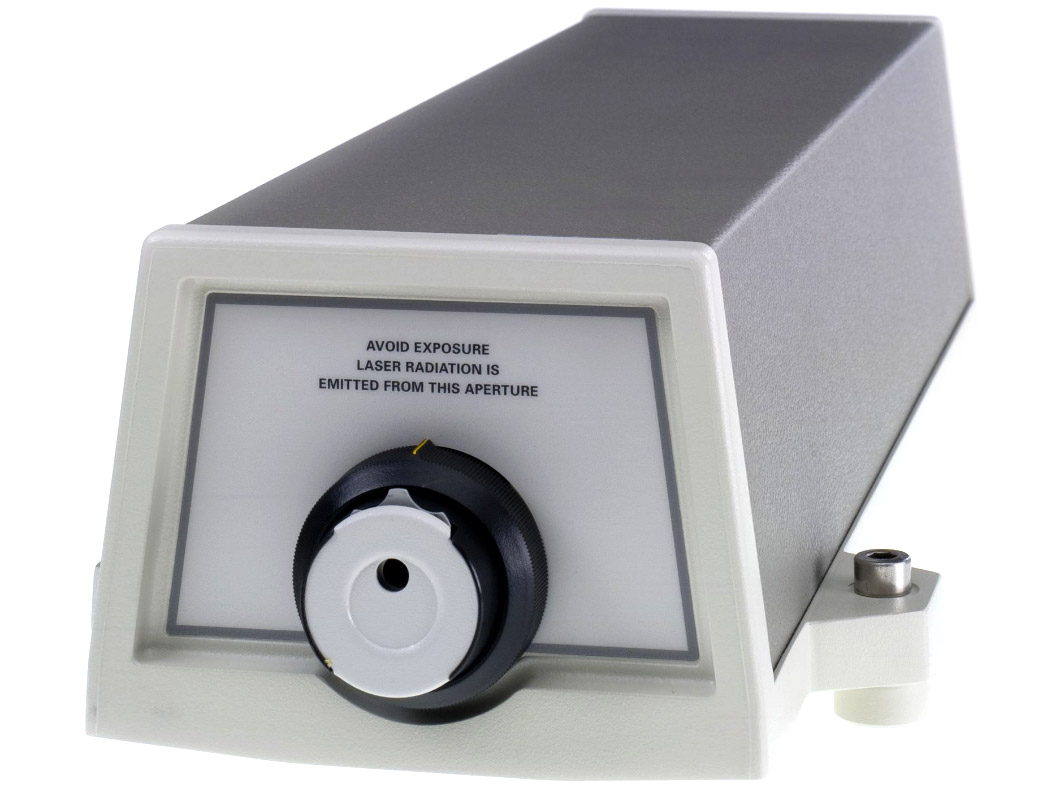

5517A Laser Head, max velocity with linear optics
Enlarge Image
Keysight 5517A
Request Quote Print Page
Manual Supplemental Document
The 5517A is used primarily in VME and PC based laser interferometer systems where the velocity of motion is slower, such as machine tool applications.

Keysight 5517A Features
General
  • Laser Head, lowest velocity, largest size
  • Max Velocity with Linear Optics: 400 mm/s
  • Weight: 5.5 kg (12 lb)
  • Reference frequency: 1.5 to 2.0 MHz

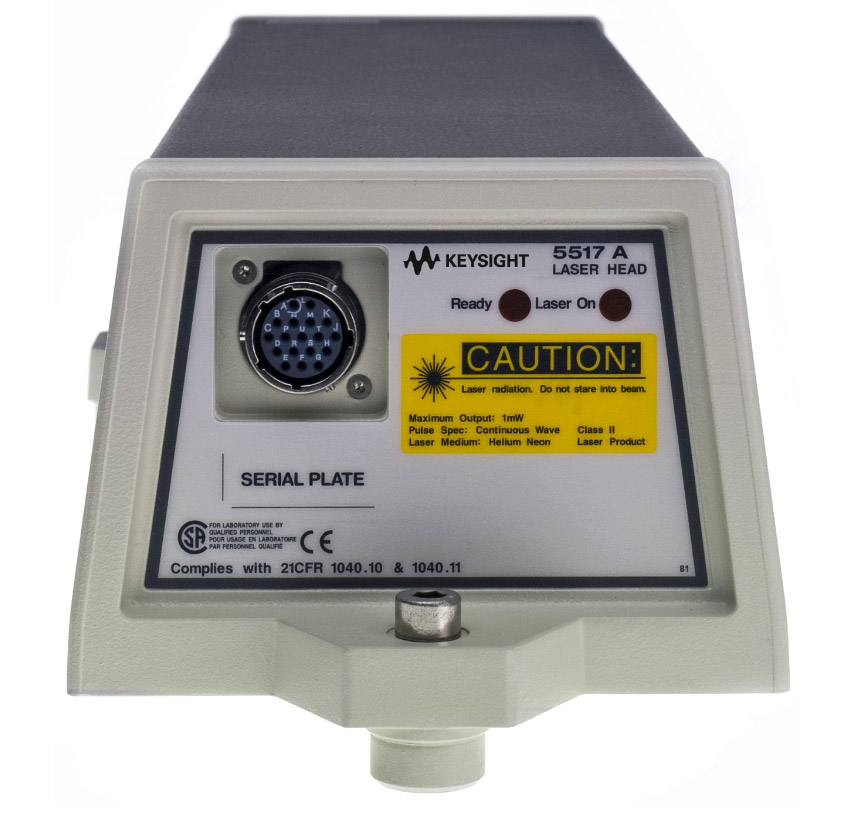

  • Clearance required for cabling: 12.00 cm (4.72 in) beyond back of unit



Laser Beam
  • Diameter: 6 mm (0.25 in)
  • Minimum Output Power: 180 uW



Electrical Power
  • ±15V ± 0.3V at 2.5A maximum
  • -15V ± 0.3V at 0.02A maximum
  • Warm-up Dissipation: 35W
  • Operating Dissipation: 23W
