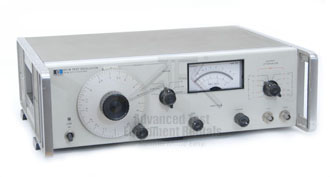

HP Agilent 651B Oscillator 10Hz to 10 MHz
Enlarge Image
Keysight 651B
Request Quote Print Page
651B Datasheet
Amplitide and frequency stablity of this solid state capacitance- tuned test oscillator provides high quality signals for general purpose lab or production measurments.

Keysight 651B Specs
Frequency Range 10 Hz to 10 MHz, 6 bands
Frequency Accuracy ± 2% 100 Hz to 1 MHz ± 3%, 100 Hz and 1 MHz to 10 MHz
Distortion < 1% 10 Hz to 2 MHz; <2% 2 MHz to 5 MHz; < 4%, 5 MHz to 10 MHz
Output Connectors BNC connectors
Attenuator 90 dB range in 10 dB steps; ±0.075 dB, -60 dBm to + 20 dB<; ± 0.2dB, -70 dB, to - 60 dBm
Temperature Range 0° C to + 50°C (32°F to 122°F)
