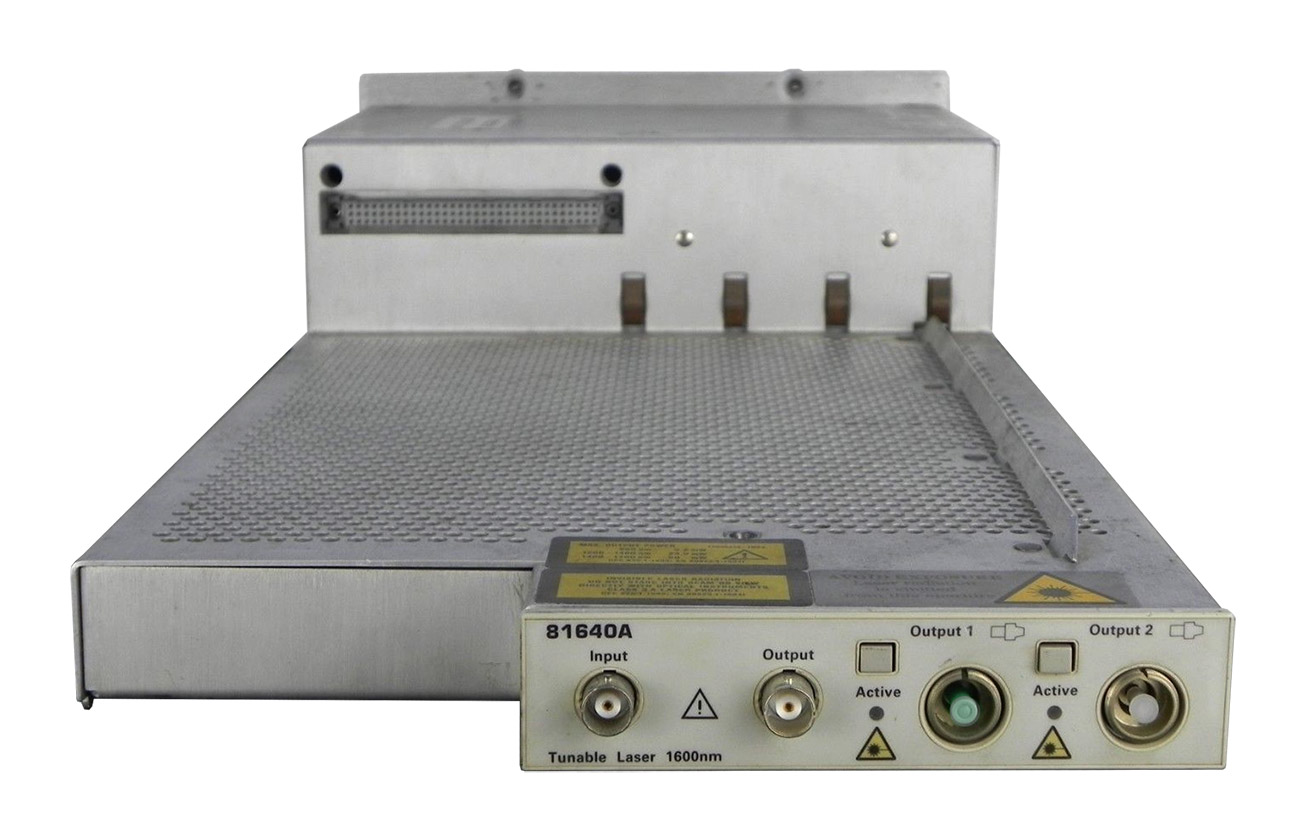

Keysight 81640A Tunable Laser Module

HP Agilent 81640A Tunable Laser Module
Enlarge Image
Keysight 81640A
Request Quote Print Page
Manual
1510 nm - 1640 nm Tunable Laser Module

Keysight 81640A Features
  • Test of critical components in both DWDM bands
  • Wavelength range: 1510 to 1640 nm
  • Absolute Wavelength Accuracy: ±0.015 nm
  • Relative Wavelength Accuracy: ±7 pm (±3 pm, typical)
  • Wavelength Resolution: 0.1 pm
  • option 072 (Polarization Maintaining Fiber, Angled connector)
Keysight 81640A Specs



Output 1

Output 2

Signal to Source Spontaneous Emission Ratio

60 dB/ nm

45 dB/ nm

Signal to Total Source Spontaneous Emission Ratio

55 dB

27 dB

Maximum Output Power

-7 dBm

+2 dBm
