Keysight 8449B Microwave Preamplifier
Tech Support
(800) 404-2832
With Every
Rental
Worldwide
Delivery
Larger
Documents
Manual
Print
Email

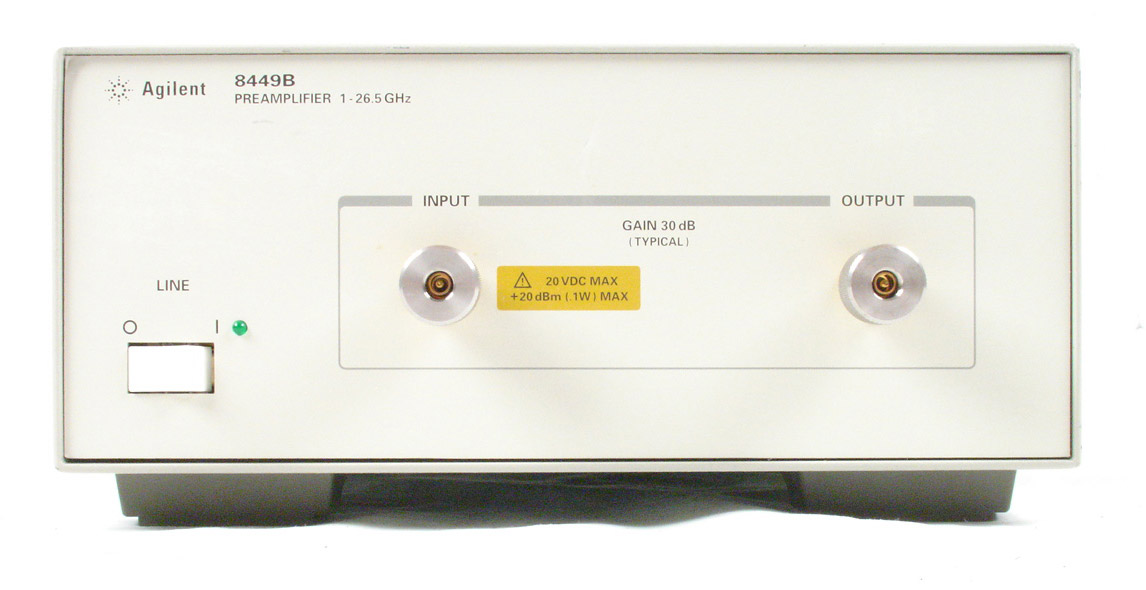

The Keysight 8449B microwave preamplifier (previously Agilent Technologies) is a high-gain, low-noise
preamplifier
that provides additional sensitivity for any RF/microwave spectrum analyzer for detection and analysis of very low signals. The improved sensitivity can dramatically reduce measurement time.
Specifications
Features
Applications
Options
Accessories
Standards
Videos
Features
Sensitivity for MIL-STD radiated measurements
Noise Figure: 1.0-12.5 GHz - 8.5dB; 12.5-22.0 GHz - 12.5dB; 22.0-26.5 GHz - 14.5dB
Minimum Gain: 23.5dB
Gain Flatness: 1.0-26.5 GHz - ±4.5dB; 2.0-22.0 GHZ ±3.5dB
Gain compression: <1 dB for output signal of ≤ +7 dBm
Connector Type: ACP - 3.5 male
