Agilent 85046B S-Parameter Test Set

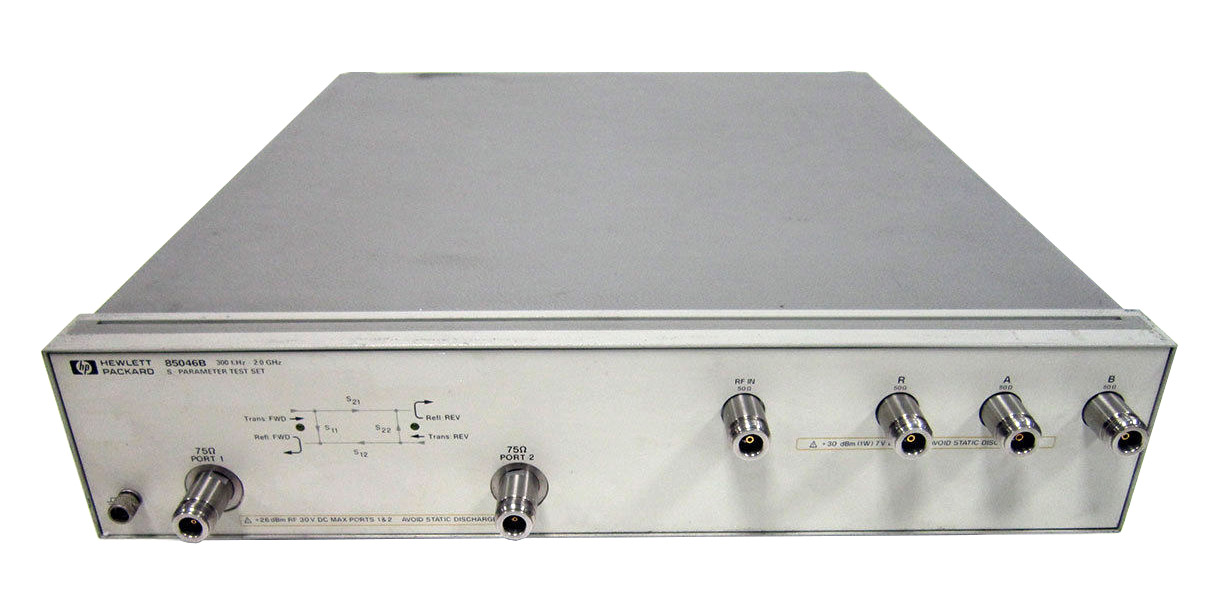

HP/Agilent 85046B S-Parameter Test Set, 300 kHz - 2 GHz
Enlarge Image

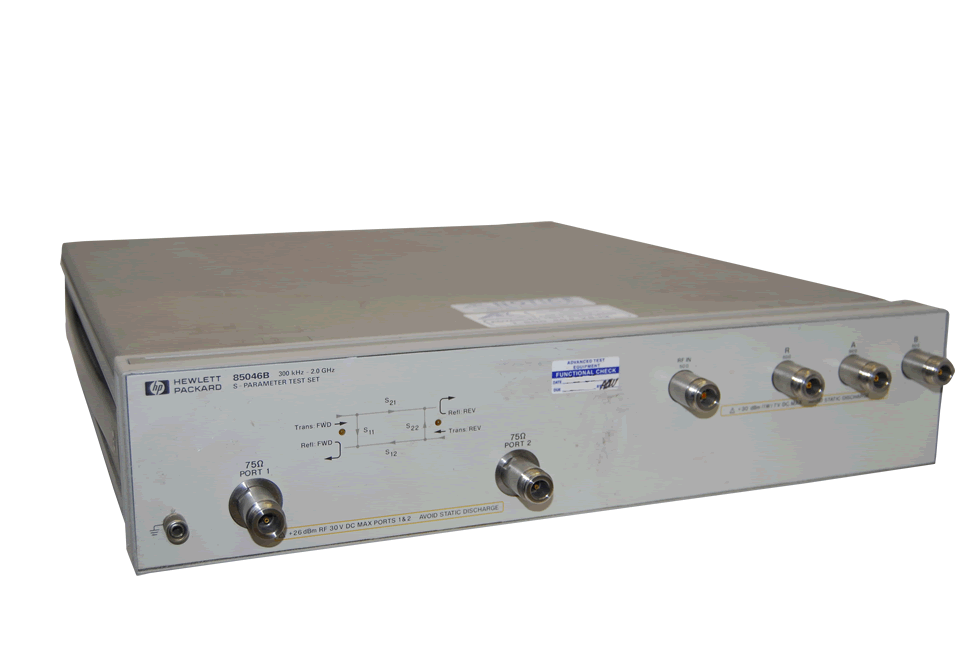

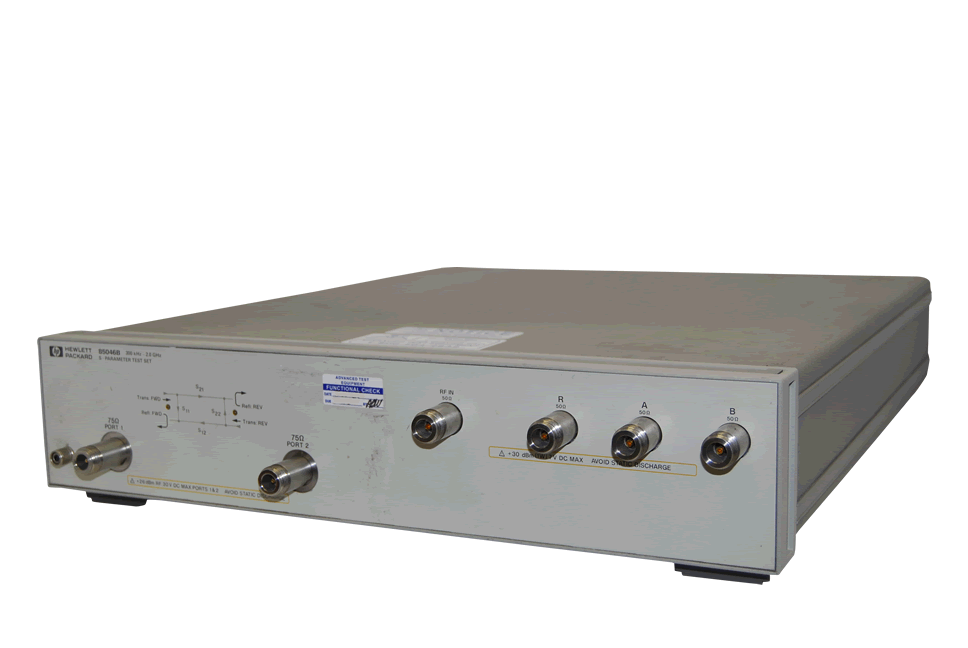

HP/Agilent 85046B S-Parameter Test Set, 300 kHz - 2 GHz HP/Agilent 85046B S-Parameter Test Set, 300 kHz - 2 GHz HP/Agilent 85046B S-Parameter Test Set, 300 kHz - 2 GHz
Request Quote Print Page
Manual

Features:

  • Impedance: 75 W
  • Frequency Range: 300 kHz to 2 GHz
  • Directivity: 35 dB to 1.3 GHz, 30 dB to 2.0 GHz
  • Transmission Magnitude, phase:
    • 0.3 to 2.0 MHz: ±1.5 dB, ±20°
    • 2.0 MHz to 2 GHz: ±1.5 dB, ±10°
  • Effective Source Match:
    • 0.3 MHz to 2.0 MHz: 14 dB
    • 2.0 MHz to 1.3 GHz: 17 dB
    • 1.3 GHz to 2 GHz: 16 dB
