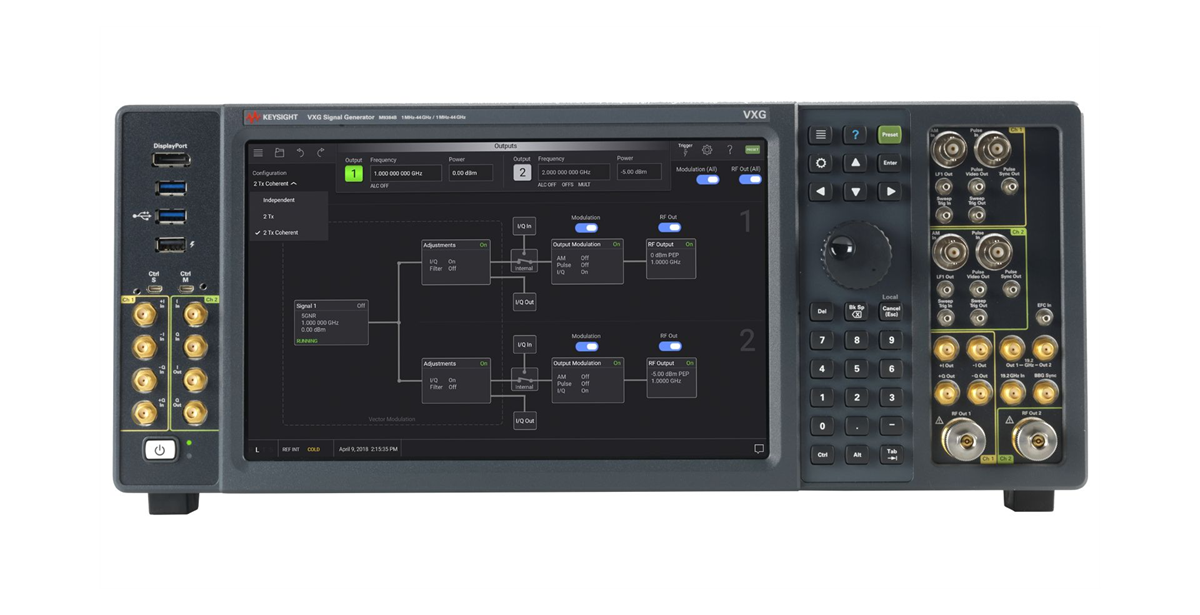

Keysight M9384B VXG Microwave Signal Generator
The Keysight M9384B VXG Microwave Signal Generator covers a frequency range from 1 MHz to 44 GHz and delivers up to +24 dBm of output power. It features a wide modulation bandwidth of up to 2 GHz and offers exceptional signal purity with low phase noise. The generator includes an integrated arbitrary waveform generator for complex waveform creation and supports multi-channel, phase-coherent configurations. With a user-friendly touchscreen interface and remote control capabilities via LAN, USB, and GPIB, it is ideal for advanced testing in 5G, aerospace, defense, and satellite communications.
| Frequency | 1 MHz - 44 GHz |
| Bandwidth Options | 500 MHz 1 GHz 2 GHz |
| Output Power @1 GHz | +20 dBm |
| Frequency Switching (Typical) | 28 ms (meas) |
| Harmonics @1 GHz | -46 dBc |
| Non-Harmonics @1 GHz | -50 dBc |
| Phase Noise @1 GHz (20 kHz offset) | -137 dBc/Hz (10 kHz offset) |
- Wide RF bandwidth
- High output power to compensate for system loss and enable 5G power amplifier and over-the-air (OTA) testing
- Phase coherent local oscillator (LO) and baseband synchronization for multi-user or beamforming MIMO OTA testing
- PathWave Signal Generation software supports application-specific and custom signal creation
- 3GPP 5G NR standard-compliant signals with channel coding and multi-antenna port support
SKU: KEYS-M9384B
