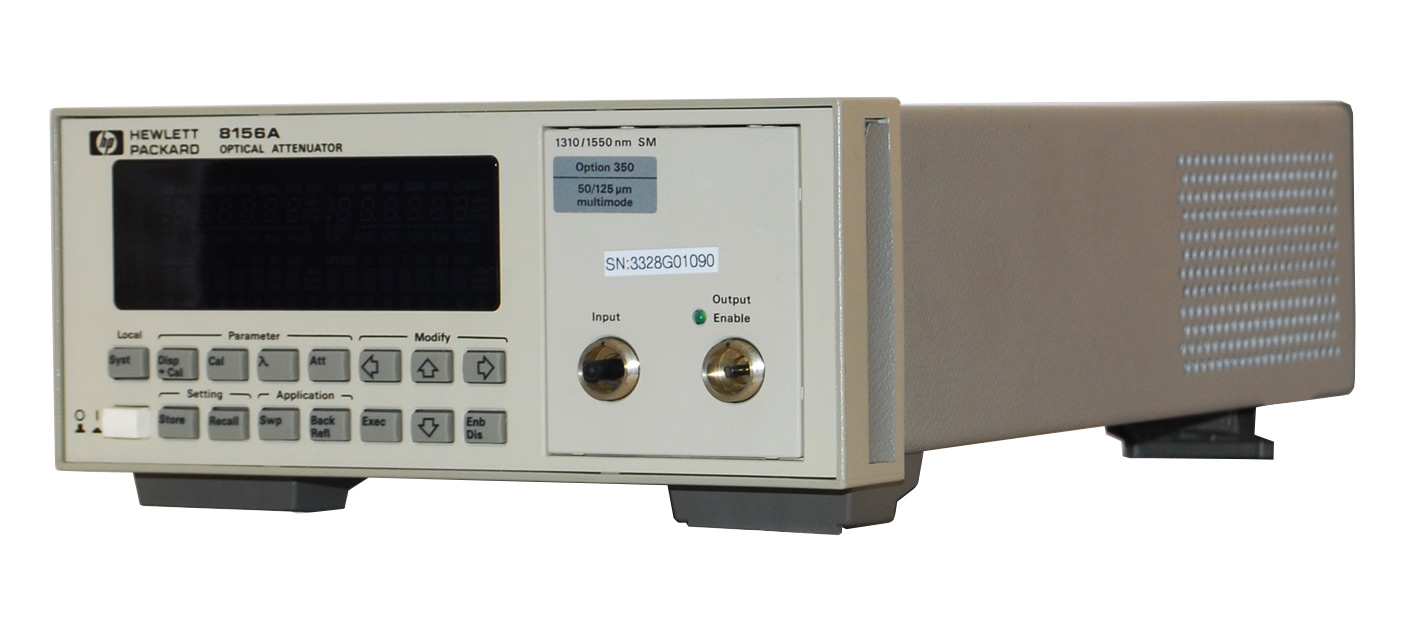

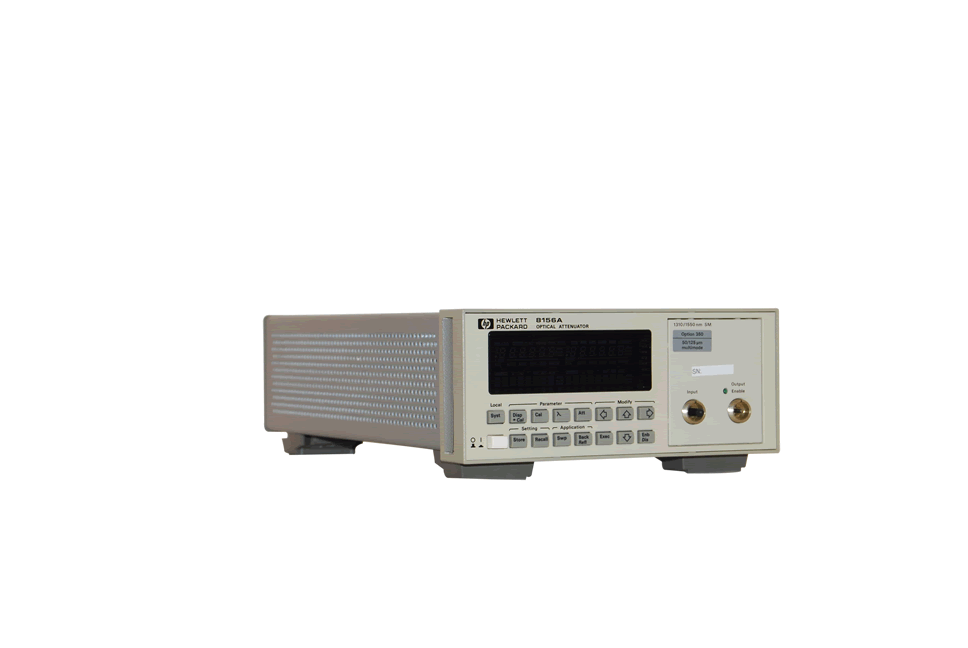

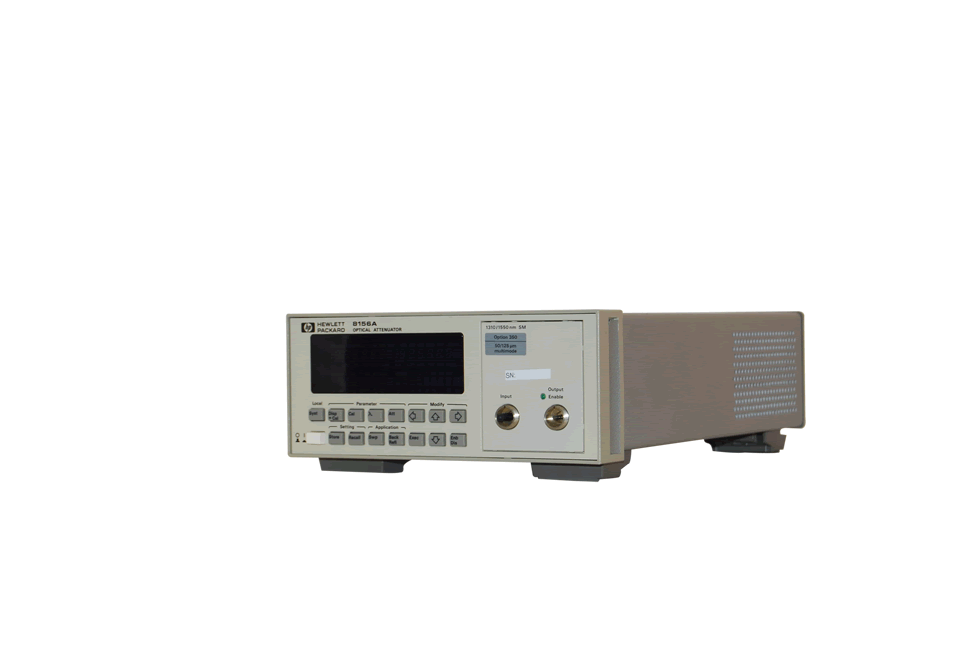

Keysight 8156A Optical Attenuator

1200-1650 nm Optical Attenuator. Keysight 8156A Optical Attenuator instruments were previously manufactured by Agilent Technologies.

Product Info

Wavelength Range: 1200 to 1650 nm
Fiber Optic: Single-mode
- Opt. 350: 50 mm multimode
- Attenuation Range: 60 dB
- Resolution: 0.001 dB
Return Loss:
- Opt. 100: >35 dB
- Opt. 101/121: >45 dB
- Opt. 201/221: >60 dB
- Opt. 350: >22 dB
Insertion Loss:
- Opt. 100: 4.5 dB
- Opt. 101/201: 2.5 dB
- Opt. 121/221: 3.3 dB
- Opt. 350: 3.0 dB
Repeatability: ±0.005 dB
Switching Time: 20-400 ms
Maximum Input Power: +23 dBm

SKU: AGIL-8156A
