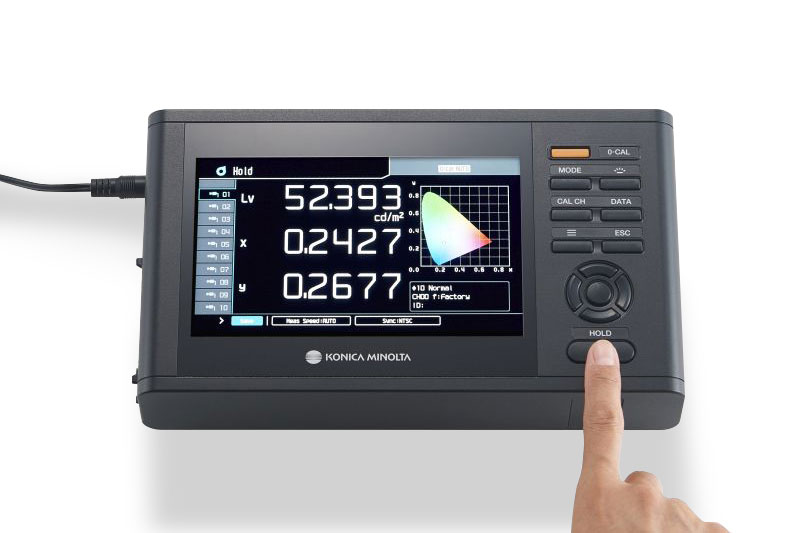

Konica Minolta CA-410 Display Color Analyzer

Larger

Categories

Light & Color Meters

Documents

Datasheet

The Konica Minolta CA-410 Display Color Analyzer is a series of highly accurate and fast tools to measure and evaluate displays. The CA-410 Display Color Analyzer series boasts improved measurement capabilities to stay up-to-date with today's HDR and OLED displays. The analyzer series gives the user incredible versatility through manual adjustments of chromaticity and gamma characteristics through a wide scope of low-to-high luminance.

Through the many high-luminance probes in the series, the Konica Minolta CA-410 Display Color Analyzer easily measures backlit components with LED displays. The CA-410 Display Color Analyzer does not sacrifice speed with that improved versatility, using high-sensor sensitivity and computing to collect various precise measurements in little time. Every probe within the CA-410 series has flicker measurement capabilities in methods like VESA, JEITA, and FMA along with the CA-310 Mode and XYZ Mode available with the CA-410 Normal Probes.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Accuracy guaranteed from low to high luminance
High accuracy comparable to spectroradiometers in chromaticity measurements
High-speed measurements for enhanced productivity
Designed for incorporation into automatic systems
Flicker measurement with a wide frequency range that covers any type of display

Specifications

Data Processor CA-DP40 Specifications
Display Range
Luminance	0.0001 to 30,000 cd/m²
Chromaticity	Displayed in 4 digits
Flicker Contrast	0.00 to 999.99%
Flicker JEITA	To 2 decimal places
General
Display	7-inch color LCD WVGA
Measurement Data Storage Channels	100 CH
Data Logging Function	Available
Multi Probe Connection	10 probes (maximum)
Operation Temperature/Humidity Range	10 to 35°C Relative humidity 85% or less with no condensation
Battery Life	3 hours (when one probe is connected)

Applications

Options

Accessories

Standards

Media
