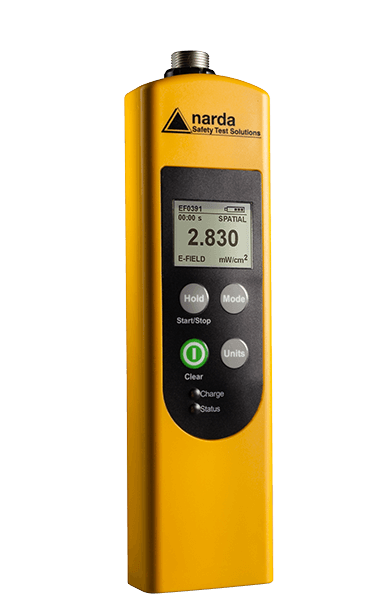

Narda NIM-510 | 300 kHz - 100 MHz
The Narda NIM-510 is specifically engineered for the precise and simultaneous measurement of electric and magnetic fields within industrial settings operating at ISM frequencies. The NIM supports measurements across a frequency range of 300 kHz - 100 MHz, catering to requirements for monitoring RF exposure levels in compliance with industry standards such as IEEE C95.1. Additionally, its ease of use, affordability, and compact design enhance its utility in various industrial scenarios. Reach out for all calibration needs related to the NIM 510.
If you are looking to rent a Narda NIM, check out Narda NIM-511 Industrial Field Meter.
| Field type | Electric (E-) field and magnetic (H-) field, switchable |
| Frequency range | 300 kHz - 100 MHz |
| Measurement range | E-field: 0.1 to 100 mW/cm2 (20 to 614 V/m) H-field: 0.2 to 200 mW/cm2 (0.073 to 2.3 A/m) |
| CW damage level | 50 W/cm2 |
| Directivity | Isotropic (tri-axial) |
| Flatness of frequency response | E-field: ±0 dB @ 13.56 MHz ±1.5 dB (300 kHz to 100 MHz) |
| H-field: ±0 dB @ 13.56 MHz -2 dB typ. @ 300 kHz +0.6/-1 dB (1 MHz to 30 MHz) +0.6/-1 dB (40 MHz to 100 MHz) |
|
| Isotropic response | ±1 dB |
| Temperature response | +0.8 dB (10°C to 40°C) |
| Dimensions | Basic unit: 38 x 52 x 205 mm (1.5 x 2.0 x 8.1 in) |
| Weight | Basic unit: 300 g (0.66 lb.) |
- Covers for example most industrial equipment, RF heat sealers and vinyl welders, Semiconductor Process Equipment and glass deposition, RF induction heating, dielectric dryers, heaters, or plasma generation systems
- Isotropic sensor
- Fast measurement
- Reliable measurement results
- Compliant to standards
- Extremely easy to use
- Low cost, compact, and lightweight
SKU: NARD-NIM-510-2403/02B
