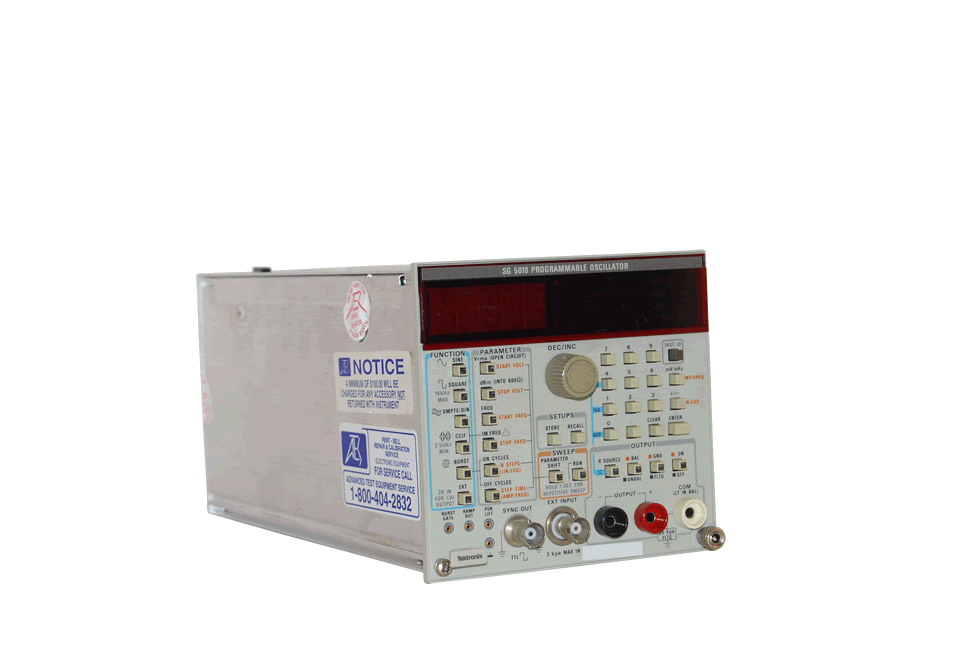

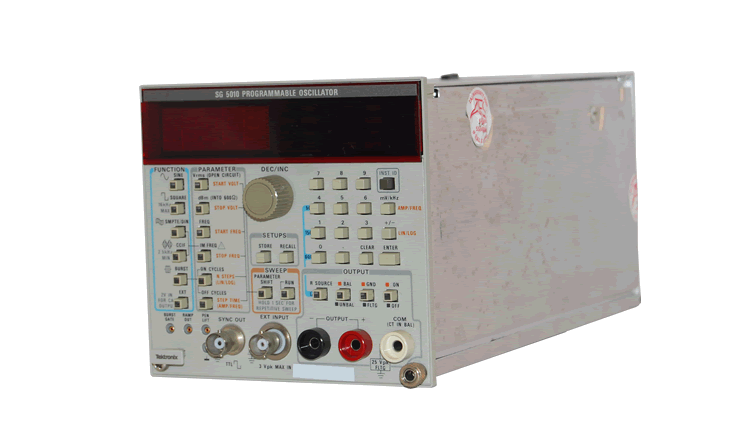

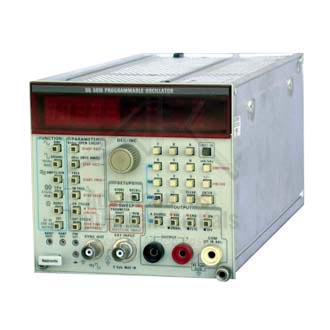

Tektronix SG5010 Low Distortion Audio Oscillators
Enlarge Image
Tektronix SG5010 Low Distortion Audio Oscillators Tektronix SG5010 Low Distortion Audio Oscillators
Tektronix Test Equipment SG5010
Request Quote Print Page
SG5010 Datasheet
10 Hz - 163.8 kHz, ±0.01% Low Dist. Prog. Multifunction Generator

Tektronix Test Equipment SG5010 Features
  • 10 Hz to 100 kHz Sine Wave Output
  • Ultra-Low Distortion: 0.0008% THD
  • Sine Wave, Sine-Wave Burst - SMPTE/DIN: 10 Hz to 163.80 kHz ±0.01%. CCIF Center Frequency: 2.500 to 163.80 kHz ±0.01%.  Square Wave: 10 Hz to 16.380 kHz ±0.01%
  • Sine Distortion: 20 Hz to 20 kHz: 0.001% (-100 dB)
  • Output Level Range and Accuracy
    Balanced - into open circuit: 200 µV to 21.2 V RMS. Into 600 ohms: -72.45 to +28.05 dBm.
    Unbalanced - into open circuit: 200 µV to 21.2 V RMS. Into 600 ohms: -72.45 to +22.05 dBm
  • Output Impedance and Configuration: 50 ohms ±3%, 150 ohms ±2%, or 600 ohms ±1%, balanced or unbalanced, floating or grounded
