Tektronix TDS3034B Color Digital Phosphor Oscilloscope 300 MHz, 2.5Gs/s

Rent Tektronix TDS3034B Color Digital Phosphor Oscilloscope 300 MHz, 2.5Gs/s
Enlarge Image

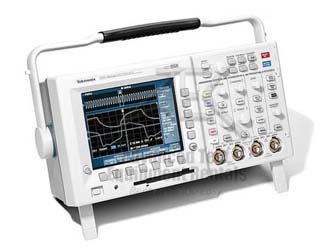

Tektronix Test Equipment TDS3034B
Request Quote Print Page
Manual Datasheet

The Tektronix TDS3034B Color Digital Phosphor Oscilloscope 300 MHz, 2.5Gs/s packs the power of a DPO, digital real-time (DRT) sampling technology, WaveAlert waveform anomaly detection, OpenChoice documentation and analysis solutions into a lightweight, battery-capable design.


The Tektronix TDS3034B 2 Channel, 300 MHz Oscilloscope delivers 3,600 wfms/s continuous waveform capture rate to capture glitches and infrequent events three times faster than comparable oscilloscopes. Some oscilloscope vendors claim high waveform capture rates for short bursts of time, but only DPOs can deliver these fast waveform capture rates on a continuous basis – saving minutes, hours or even days by quickly revealing the nature of faults so advanced triggers can be applied to isolate them. In addition, the Tektronix TDS3034B DPO’s real-time intensity grading highlights the details about the "history" of a signal’s activity, making it easier to understand the characteristics of the waveforms you’ve captured.


Specifications:

Bandwidth 300 MHz
Channels 4
Sample Rate on Each Channel 2.5 GS/s
Maximum Record Length 10 K points
Vertical Resolution 9 Bits
Vertical Sensitivity (/div) 1 mV to 10 V
Vertical Accuracy ±2%
Max Input Voltage (1 M ohms) 150 VRMS CAT I (300 V CAT II with standard 10X probe)
Position Range ±5 div
BW Limit 20, 150 MHz
Input Coupling AC, DC, GND
Input Impedance Selections 1 M ohms in parallel with 13 pF or 50 ohms
Time Base Range 2 ns to 10 s/div
Time Base Accuracy 20 ppm
Display Monitor (VGA) Color active matrix LCD
