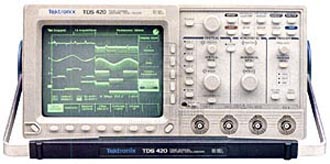

Tektronix TDS460 Digitizing Oscilloscope 350 MHz, 100Ms/s

Display

• Waveform Style - Dots or vectors. Infinite and variable persistence from 250 ms to 10s.
• Gray Scaling
• Update Rate - 200 ea. 500 point waveforms per sec with infinite persistence mode selected.
• Graticules - Full, grid, cross hair, frame
• Format - YT and XY
• VGA Out - Drives VGA display monitors.
• Zoom - The zoom feature allows waveforms to be expanded, compressed and positioned in both vertical and horizontal axes.

Signal Acquisition System

• Bandwidth - 350 MHz
• Channels - 4
• Digitizers - 4
• Sample Rate - 100 MS/s on all channels
• Sensitivity - 1 mV to 10 V/div
• Position Range - ± 5 Divisions
• Vertical Resolution - 8-bits (256 levels over 10.24 vertical divisions).
• Analog Bandwidth Selections - 20 MHz, 100 MHz, and full.
• Input Coupling - AC, DC, or GND
• Input Impedance Selections - 1 M ohms in parallel with 15 pF, or 50 ohms (AC and DC coupling).
• Maximum Input Voltage - ± 400 V (DC + peak AC).

Acquisition Modes

• Peak Detect
• Sample
• Envelope
• Average
• Hi-Res

Time Base System

• Time Bases - Main, Delayed
• Time/Division Range - 1 ns to 20 s/div
• Record Length (real time and equivalent time) - Sample points per channel:  500 to 15,0000, Opt. 1 offers 60,000 points.
• Pre-Trigger Position - Selectable from 0 to 100% of record.

Triggering System

• Triggers - Main, Delayed.
• Main Trigger Modes - Auto, Normal, Single Sequence.
• Delayed Trigger - Delayed by time or events.
• Time Delay Range - 0 ns to 20 s.
• Events Delay Range - 2 to 10,000,000 events.
• Video Trigger Types - NTSC, PAL, SECAM, and Custom; TV Field, field 2 or both.
