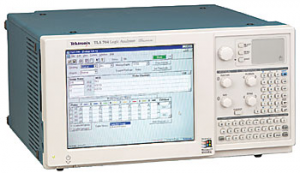

Tektronix TLA714 Logic Analyzer Mainframe
Tech Support
(800) 404-2832
With Every
Rental
Worldwide
Delivery
Larger
Documents
Datasheet
Print
Email
The Tektronix TLA714 Logic Analyzer Mainframe product has been replaced by a new product.
Logic Analyzer Mainframe
Specifications
Features
Applications
Options
Accessories
Standards
Videos
Features
Holds 4 single-wide or 2 double-wide modules
Instrument modules include logic analyzers, pattern generators and digitizing oscilloscopes
Up to 200 MHz state acquisition with 400 MHz data rate for advanced processors and buses
500 MHz deep timing analysis with up to 128 Mb per channel
MagniVu™ technology provides 500 ps timing resolution on all channels all the time through the same probe
Simultaneous state and high speed timing analysis through the same probes pinpoints elusive faults
Broad processor and bus support universal source code support for correlating high-level language source with real-time trace
Performance analysis support for optimizing target system remote control using Microsoft COM/DCOM technology supports advanced data analysis
Microsoft Windows PC platform provides familiar user interface with network connectivity
