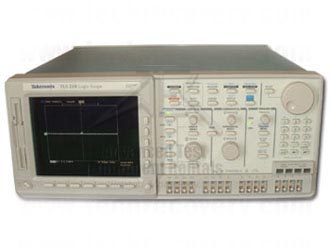

Tektronix TLS216 Logic Scope

Tektronix TLS216 Logic Scope
Enlarge Image
Tektronix Test Equipment TLS216
Request Quote Print Page
Manual Datasheet

The 500 MHz bandwidth Logic Scope samples all channels simultaneously at 2 GS/s and has sophisticated time-qualified triggering, a high resolution color display, and an integrated MS-DOS compatible 3.5 inch floppy disk drive.


Features:

  • Display Modes: Analog, Timing Diagram and BusForm
  • <± 100 ps Timing Resolution
  • 16 Input Channels
