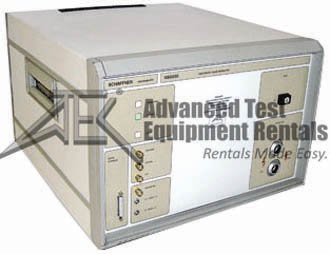

Teseq NSG1025 Fast Transient Burst Generator
Discontinued
Fast Transient Burst Generator
| Pulse amplitude | 225V; 4400V (off-load) | |
| Polarity | Pos. or neg. selectable | |
| Pulse rise time | 5ns ± 20% | |
| Pulse width | 50ns ± 30% | |
| Burst frequency f Burst | 2,5/5/10kHz ± 10% | |
| Burst duration t Burst | 15ms ± 20% | |
| Burst repetition t Rep | 300ms ± 20% | |
| Generator impedance | 50 ohms ± 20% (dynamic) | |
| Coupling network | as per IEC 801-4, built-in | |
| Inputs/Outputs | ||
| IEC equipment socket for the instrument supply | ||
| 16A equipment plug for the test object supply | ||
| Test object connection; country-specific mains socket - UL | ||
| Gate function for Burst and 50Hz pulse: | BNC, active 0 | |
| Trig, function for single pulse: | BNC, active 0, with LED | |
| Pulse output: | HV coaxial connector | |
| Measurement output: | BNC, 100:1 into 50 ohms | |
- Conforms to IEC 801-4; IEC 1000-4-4
- Test voltages up to 4400V
- Burst frequencies up to 10KHz
- Single pulse capability
- Integrated coupling network
SKU: SCHA-NSG1025
