Teseq

Teseq NSG600 Interference Simulator System

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery

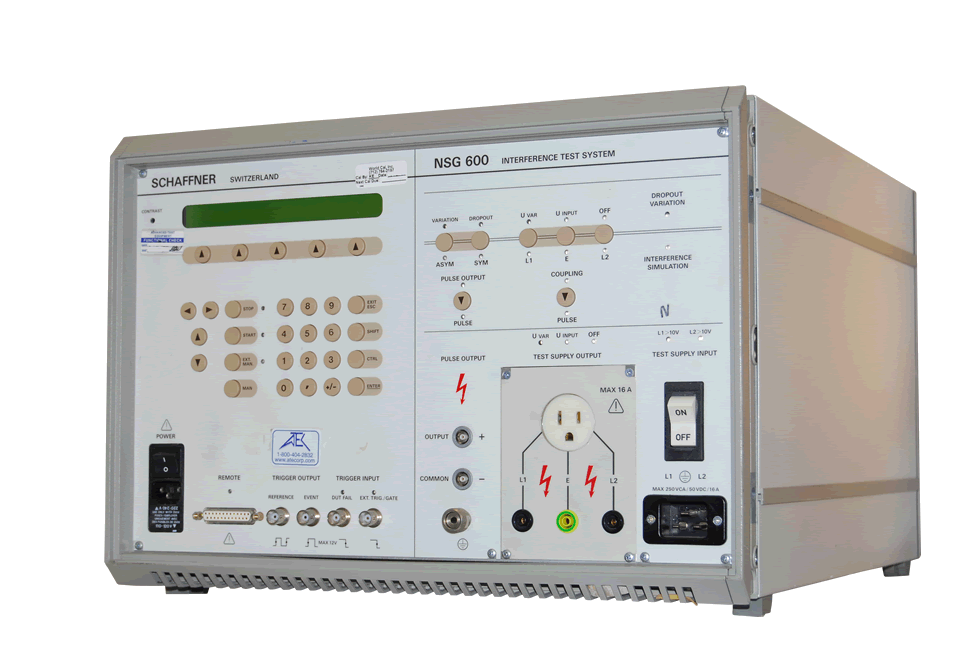

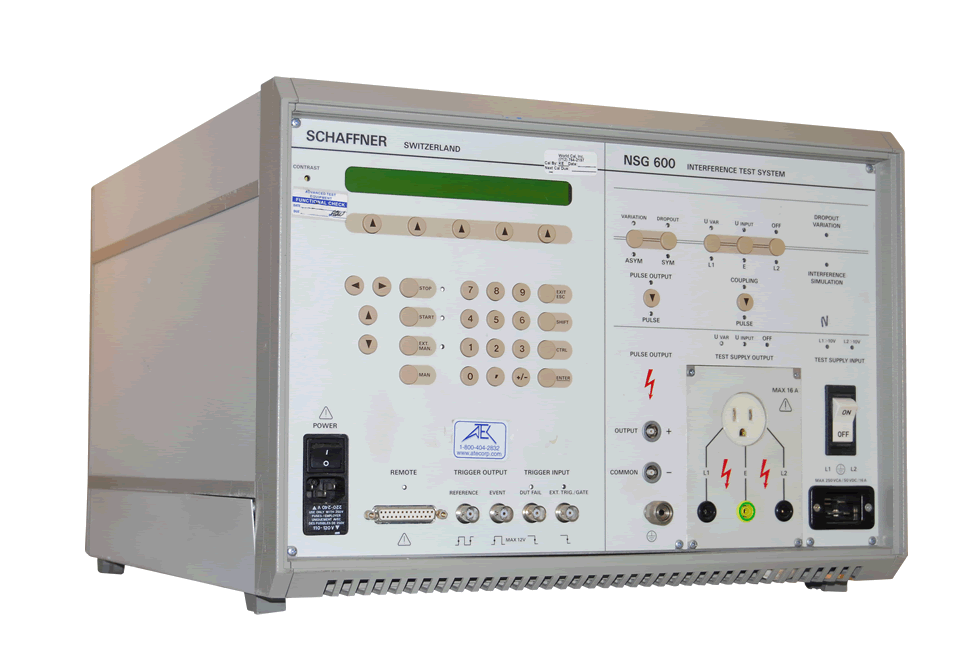

Teseq NSG600 Interference Simulator System Larger
Teseq NSG600 Interference Simulator System
Teseq NSG600 Interference Simulator System
Categories
  • Transient Generators
    Transient Generators
Documents
  • Datasheet
  • Print
  • Email

This product has been discontinued.

View the Teseq NSG 3060 Transient Generator

The Schaffner NSG600 Interference Simulator System provides for the simulation of the most varied transient conditions which occur in AC and DC mains, but also has facilities to permit the application of transients without supply voltage. The system consists of a main frame and various plugin units which generate the specific disturbances.
  • Specifications
  • Features
  • Applications
  • Options
  • Accessories
  • Standards
  • Videos
Features
  • Main frame unit with centralized power supply and control for 1 to 4 plug-in units
  • Microprocessor controlled function keys and LCD display
  • Connection to the unit under test and pulse output
  • RS 232-C interface for computerized remote control
Specifications
System Supply 110/220 V (± 20%) 50/60 Hz switchable on main frame, connection via 6 A equipment plug
EUT Supply 15 to 264 VAC; 15 to 65 Hz/16A max; 65 to 500 Hz/6A max
5 to 50 VDC/16A max
Connection via 16A equipment plug
Decoupled against generated transient pulses being fed onto the supply network
Test Supply Output supply voltage with the selected interference superimposed via the mains socket (country specific) and safety banana plugs
HV Pulse Output pulses without supply voltage: Fischer 5 kV coaxial socket (e.g. for data line coupling devices)
Remote Control RS 232-C interface with supply for opto-link: Cannon 25 pol
Plug-in Outfit 1 to 4 pieces

Plug-in Units Specifications:

NSG 603 - AC/DC Line Dropout and Variation Simulator Plug-in:

  • Dropout, Sag and Swell Simulations
  • Power to a device being tested can be either fully interrupted or made to deviate from the normal value
  • Connection for future expansion to 3 phase dropouts using NSG633
VinREF 1 to 255 V
VvarREF 1 to 255 V
Tevent 20 µs to 130 s
Trep (asynchronous) 40 µs to 130 s
Trep (synchronous) 1 HW to 65535 HW (half cycles)
Tphase (only with synch mode) 0 ms to 170 ms



NSG 622 - Fast Pulse Simulator Plug-in:

Pulse Data amplitude unloaded ±50 to 2500 V, in steps of 20 V
Rise Time Unloaded 0.1/0.3/1/3 µs ±20%; Loaded with 50Ω: approx 70% of unloaded value
Internal Impedance 50Ω µ10%
Coupling Single phase sym. P/N; asym. P + N/E; asym. P + N + E/HF-earth; unsym. P or N or E/HF-earth
Mains decoupling incorporated
Repetition: According to pulse duration 0.1 µs: 15 ms to 99 s
0.3 µs: 30 ms to 99 s
1 µs: 100 ms to 99 s
3 µs: 200 ms to 99 s
Externally via BNC input or via single pulse key on main frame
Phase Angle Synchronous, delay adjustable from 100 µs to 99 ms with reference of 0°; Asynchronous (free running)

NSG 623 - Combination Wave Surge Generator Plug-in:

  • Combination wave generator conforming to IEC 801-5 (level 3)
  • Symmetrical up to 1.5 kV / 750 A
  • Asymmetrical up to 3 kV
  • Integral coupling into the mains
Pulse amplitude 50 to 1500 V, sym., Zi = 2 and 12Ω
200 to 3000 V, sym., Zi = 12Ω
200 to 3000 V, asym., Zi = 50Ω
200 to 3000 V, Pulse Output, Zi = 42Ω
Polarity + or - selectable
Open Circuit Data (Zi = 2Ω)
Rise time: 1.2 µs
Pulse width: 50 µs
Short Circuit Data (Zi = 2Ω) Rise time: 8 µs
Pulse width: 20 µs
Pulse Repetition 10 to 640 s
Preset Counter 0 to 64000 pulses
Phase Relation Synchronous ( 0-360 deg) or Asynchronous (free running)
Coupling Network: Internal (Single Phase)
Symmetric, floating: L1 > L2
Asymmetric: L1/L2 > E
Asymmetric: L1+L2 > E
Input EUT Supply: 0 to 264 VAC / 16 A max
External Trigger / Gate
EUT-fail, to stop simulation in the event of EUT failure
Outputs EUT connection with pulse superimposition
Pulse Output, coaxial
Safety interlock
Trigger output EVENT, BNC
Trigger output REFERENCE, BNC



NSG 625 - Fast Transient Simulator Burst Generator Plug-in:

  • Exceeds IEC 801-4, VDE 0843-T4, etc.
Pulse Amplitude U 200V to 4400V (no load); 100V to 2200V (into 50Ω); adjustable in steps of 20V
Polarity selectable, positive or negative
Rise Time tr> 5 ns ±30% (50Ω, 10 - 90%)
Single pulse width tp 50 ns ±30% (50Ω, at 50%, 500 - 4000V)
Burst Frequency f Burst for pulse amplitudes < 2000V, 0.1 to 10 kHz ±1%; For pulse amplitudes > 2000V, 0.1 to 5 kHz ±1%
Burst Duration t Burst 0.1 to 20 ms ±2% and single pulses
Burst Repetition t Rep 0.1 to 99 s ±2% (asynchronous); 5 to 64,000 half-waves (mains-synchronous)
Phasing Synchronous: delay adjustable from 0° over the range 0 to 99 ms; Asynchronous: free-running
Source Impedance 50Ω ±20% (dynamic)
Coupling Via single-phase mains coupler in the NSG600; Non-symmetric coupling on L1 or L2 or E as per IEC 801-4; Asymmetric on L1 and L2 to E or, L1 and L2 and E to HF-earth
Direct pulse output for external coupling devices
Applications
Options
Accessories
Standards
Media

RELATED PRODUCTS

Haefely PSURGE 30.2 30kV/30kA Surge Test System
Haefely PSURGE 30.2 Surge Test System | 30 kV / 30 kA
Haefely AXOS5 Compact Immunity Test System
Haefely AXOS5 Compact Immunity Test System
Teseq NSG 3060 Transient Generator
Teseq NSG 3060 Transient Generator
Haefely AXOS8
Haefely AXOS 8 Compact Conducted Immunity Test System
M Precision Laboratories EMCPro PLUS EMC Test System
M Precision Laboratories EMCPro PLUS EMC Test System
Teseq CDN 3083-S100 3 Phase, 100 Amp, 690 Volt Surge CDN
Teseq CDN 3083-S100 3 Phase, 100 Amp, 690 Volt Surge CDN
Haefely PSURGE 8000 Surge Platform Test System
Haefely PSURGE 8000 Surge Platform Test System
Teseq NSG 3040 Transient Generator
Teseq NSG 3040 Transient Generator
EM Test NX5 Multifunctional Test Generator
EM Test NX5 Multifunctional Test Generator
EM Test OCS 500N6F Damped Oscillatory Wave Simulator 3MHz/10MHz/30MHz
EM Test OCS 500N6F Damped Oscillatory Wave Simulator 3MHz/10MHz/30MHz
Compliance West MegaPulse D5-PF Defibrillation Proof Tester
Compliance West MegaPulse D5-PF Defibrillation Proof Tester
NoiseKen INS-4040 Impulse Noise Simulator
NoiseKen INS-4040 Impulse Noise Simulator
EMC-Partner IMU3000 Immunity Tester
EMC Partner IMU3000 Immunity Tester
Teseq NSG 3150 15 kV Combination Wave Surge Generator
Teseq NSG 3150 15 kV Combination Wave Surge Generator
Thermo Keytek ECAT E103 Control Center
Thermo Keytek ECAT E103 Control Center
Teseq NSG 3025 Burst Generator
Teseq NSG 3025 Burst Generator
EMC Partner DOW3000 Oscillatory Wave Generator
EMC Partner DOW3000 Oscillatory Wave Generator
EM Test UCS 500N5 Multifunctional EFT, Surge & Power Fail Generator
EM Test UCS 500N5 Multifunctional EFT, Surge & Power Fail Generator
Teseq NSG 3040-SOW Slow Oscillating Waveform Generator
Teseq NSG 3040-SOW Slow Oscillating Waveform Generator
Thermo Keytek ECAT Modular EMC Test System
Thermo Keytek ECAT Computer-Aided EMI Immunity Test System
EM Test NX7 Multifunctional Test Generator
EM Test NX7 Multifunctional Test Generator
Haefely MAG 1000 Power Frequency Magnetic Field Test Equipment
Haefely MAG 1000 Power Frequency Magnetic Field Test Equipment
Teseq INA 702 Magnetic Field Coil
Teseq INA 702 Magnetic Field Coil
Haefely PLINE 1610 Voltage / Interruption Tester for IEC 61000-4-11
Haefely PLINE 1610 Voltage / Interruption Tester for IEC 61000-4-11
Haefely PEFT Junior Burst Tester
Haefely PEFT Junior Burst Tester
  • Certified ISO 9001
  • A2LA
REP PORTAL Terms & Conditions About About ATEC Blog Media News FAQs Forms Careers

© 2023 Advanced Test Equipment Corp. All Rights Reserved.

Privacy Notice Terms of Use Site Map Linecards
This site uses cookies, as explained in our cookie policy.
