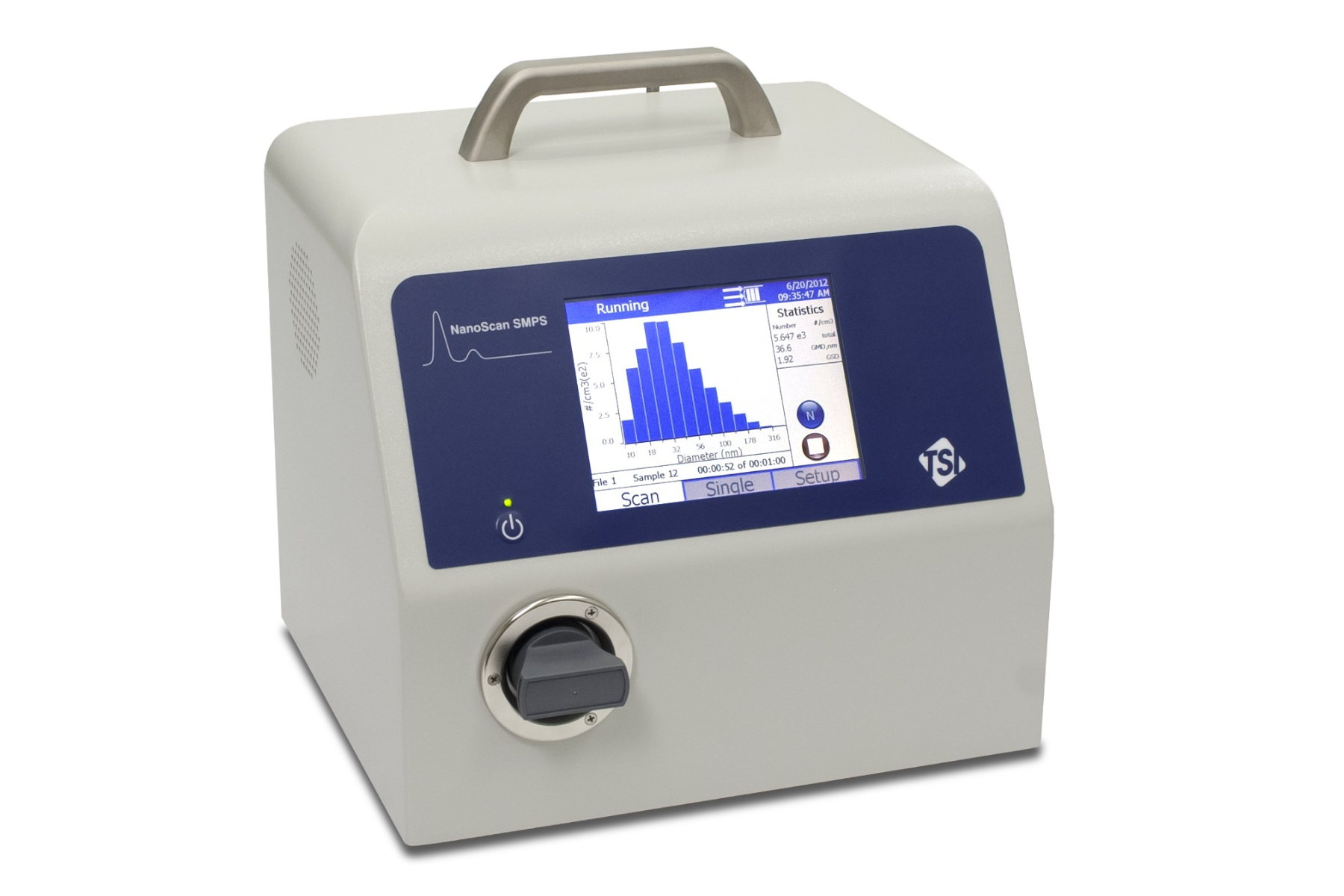

TSI NanoScan 3910 Portable Nano-Particle Sizer
TSI NanoScan SMPS 3910 measures nanoparticle size distributions from 10 to 420 nm using scanning mobility particle sizing technology and an isopropanol-based condensation particle counter. It provides real-time data in both scan and single-size monitoring modes, with onboard data logging and up to six hours of battery operation. Applications include air quality investigations, occupational hygiene, and nanotechnology research.
| Measurement Range | 10 - 420 nm |
| Measurement Modes | SCAN (size distributions), SINGLE (single size concentration) |
| Particle Concentration Range | 100 - 1,000,000 particles/cm³ |
| Size Channels | 13 |
| Measurement Time | 60 s (size distributions), 1 s (single size mode) |
| Flow Rate | 0.75 lpm ± 20% inlet; 0.25 lpm ± 10% sample |
| Condensing Liquid | Isopropyl alcohol (99.5% or better) |
| Data Storage | 3–8 days onboard memory; USB storage option |
| Display | Color touchscreen |
| Power | 100 - 240 VAC, 50/60 Hz; AC adaptor or battery |
| Battery Performance | 2 batteries, ~6 hrs; hot swappable, rechargeable |
| Dimensions (H x W x D) | 30.2 cm x 28.4 cm x 28 cm |
- Size distributions down to 10 nm
- Two measurement modes:
- SCAN: real-time size distributions
- SINGLE: single size concentration monitoring
- One-minute size distributions; 1 second single size data
- Simple, stand-alone operation
- Built-in data logging
- Small and portable
- ~Six hour battery life, with hot swappable rechargeable batteries
- Concentrations up to 1,000,000 particles/cm3
- NanoScan Manager software package
- No radioactive materials
- General applied research
- Occupational hygiene/workplace exposure monitoring
- Indoor/outdoor air quality investigations
- Nanotechnology/nanoparticle applications
- Combustion/emission research
- Mobile studies
- Health effects/inhalation toxicology
- Point source identification
SKU: TSI-NANOSCAN-3910
