Dimensions
(H x W x L) |

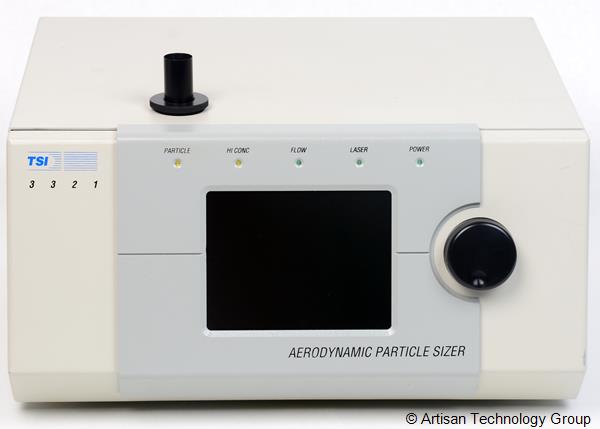

Aerosol inlet: 3/4 in (O.D.)
Sensor (HWD): 18 cm x 30 cm x 38 cm (7 in x 12 in x 15 in) |
| Weight |
10 kg (22 lb.) |
| Particle size range |
0.5 to 20 µm aerodynamic sizing
0.37 to 20 µm optical detection (PSL equivalent) |
| Aerodynamic size resolution |
0.02 µm at 1.0 µm, 0.03 µm at 10 µm |
| Particle type |
Airborne solids
Nonvolatile liquids |
| Concentration accuracy |
±10% of reading plus variation from counting statistics |
Maximum processing rate
(for aerodynamic sizing) |
>200,000 particles/sec |
| Sampling time |
Programmable and repeatable from 1 sec to 18 hr per sample
Sampling schedules selected by user |
| Operating temperature |
10 to 40°C (50 to 104°F) |
| Flow rates |
Aerosol sample: 1.0 l/min ±0.1
Sheath air: 4.0 l/min ±0.1
Total: 5.0 l/min ±0.2 |
| Power |
Power 100 to 240 VAC
50/60 Hz
100 W
Single phase or 24 VDC |

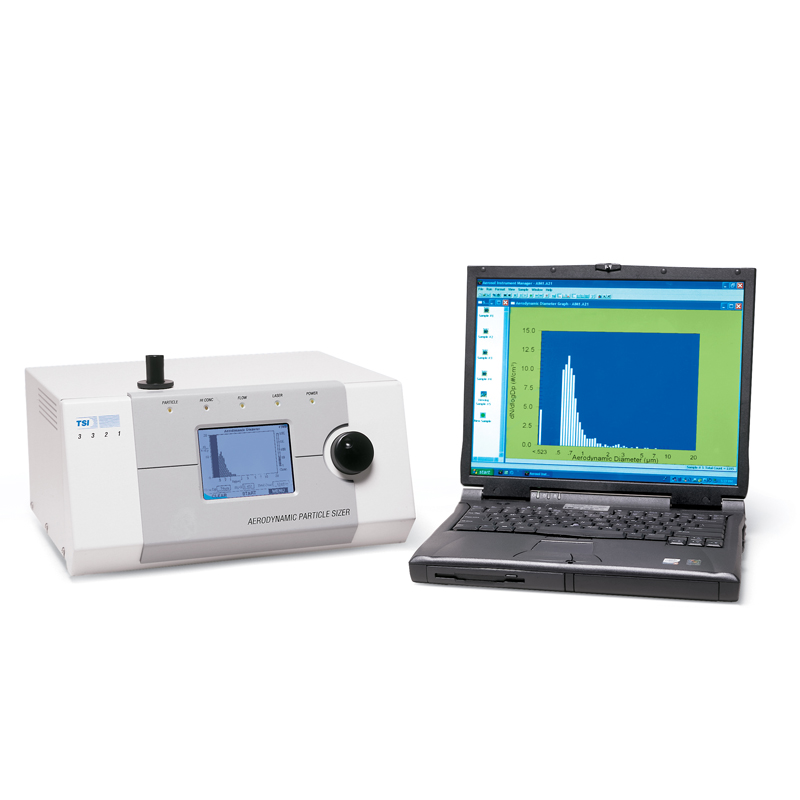

| Computer requirements |
Pentium® 4 processor with 2-GHz speed or better
At least 512 MB RAM |
