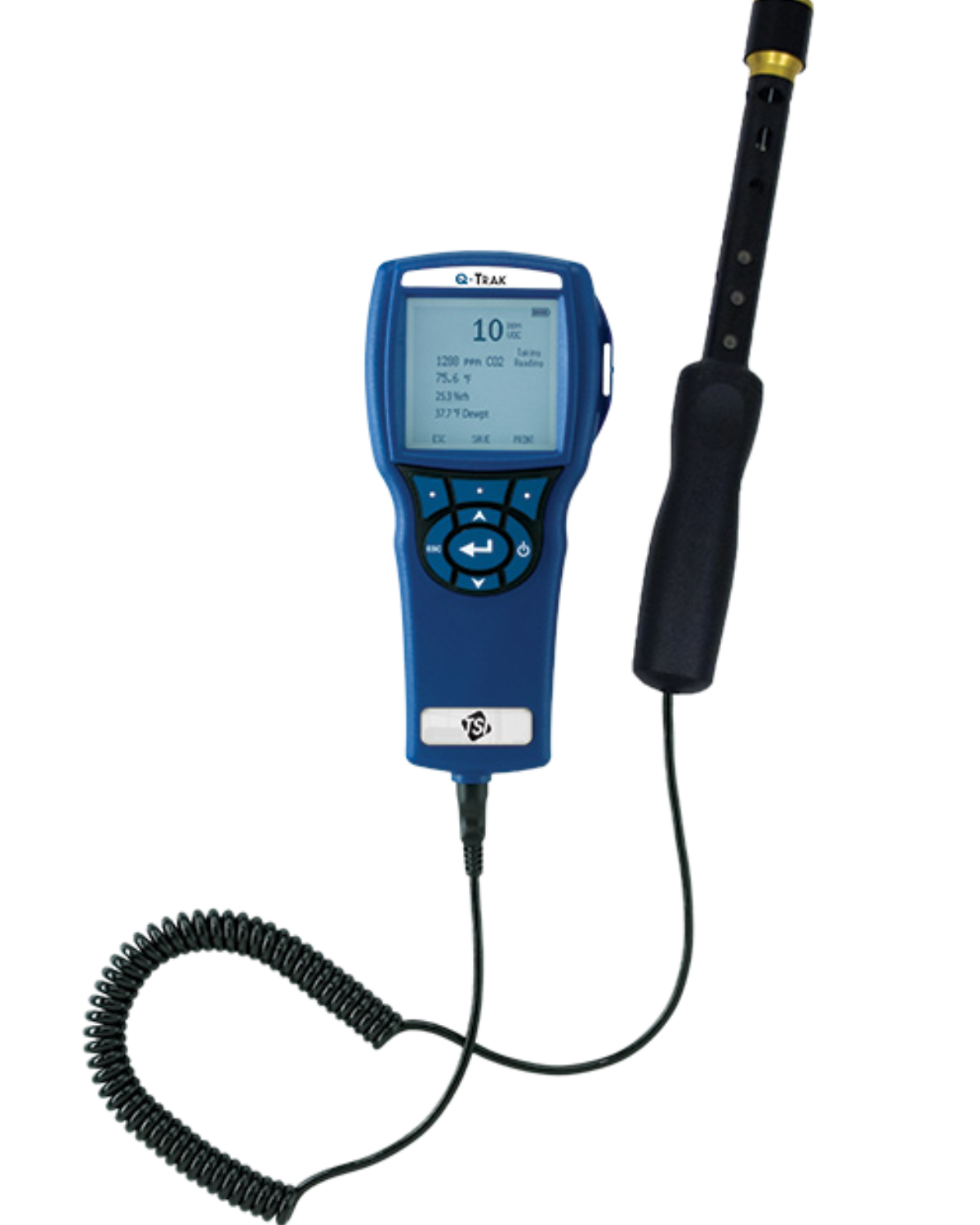

TSI Q-Trak 7575 Indoor Air Quality Monitor

CO₂, CO, temperature, & humidity

The TSI Q-Trak 7575 is a portable air quality monitor that records multiple indoor parameters in a single device. It measures carbon dioxide, carbon monoxide, temperature, and humidity, and also calculates values such as dew point, wet bulb temperature, and outside air percentage. The unit works with a range of plug-in probes, including options for VOC detection and airflow measurement, and can log up to 39 days of readings for later review. Data is managed through included TrakPro software, with models available in standard or bluetooth configurations for flexible transfer and reporting.

Product Info Product Options Related Products

Measured Parameters	CO₂, CO, temperature, humidity
Calculated Parameters	Dew point, wet bulb temperature, percent outside air
Data Logging	Up to 56,035 data points, ~39 days at 1-minute intervals
Communication	USB standard; Bluetooth available on select models
Display	Large graphic display, up to 5 simultaneous readings
Software	TrakPro Data Analysis Software included
Languages Supported	12
Power Supply	4 AA alkaline batteries or AC adapter
Memory Functions	User-selectable log intervals (1 second to 1 hour), time constants (1–30 sec)
Dimensions	Instrument: 3.8 × 8.3 × 2.1 in. (9.7 × 21.1 × 5.3 cm) Probe: 7.0 in. length × 0.75 in. diameter (17.8 × 1.9 cm)
Weight	0.8 lbs (0.36 kg) with batteries
Operating Temperature	40 - 113 °F (5 - 45 °C)
Storage Temperature	-4 - 146 °F (-20 - 60 °C)

Simultaneously measures CO₂, CO, temperature, and humidity
Calculates dew point, wet bulb temperature, and percent outside air

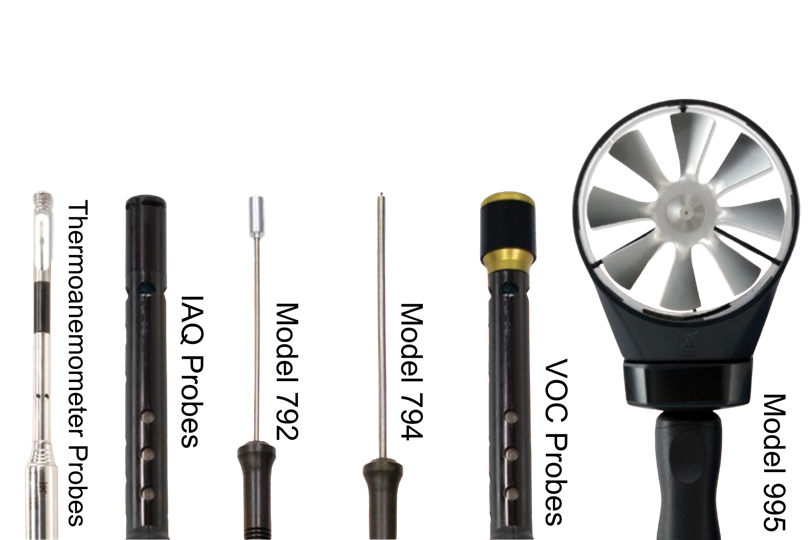

Compatible with plug-in probes for VOCs and air velocity
Stores up to 39 days of logged data (56,000+ data points)
Large graphic display showing up to 5 measurements at once
TrakPro software included for data analysis and reporting
USB connectivity standard; Bluetooth available on select models
On-screen prompts and step-by-step calibration guidance
Supports 12 languages
Battery or AC power operation

SKU: TSI-QTRAK-XP-7575

Product Options

Model	VOC Range	Temperature Range	Humidity	CO₂	Resolution	Accuracy
984	10 - 20,000 ppb	14 - 140 °F (–10 - 60 °C)	No	No	10 ppb, 0.1 °F (0.1 °C)	±1.0 °F (±0.5 °C)
985	1 - 2,000 ppm	14 - 140 °F (–10 - 60 °C)	No	No	1 ppm, 0.1 °F (0.1 °C)	±1.0 °F (±0.5 °C)
986	10 - 20,000 ppb	14 - 140 °F (–10 - 60 °C)	5 - 95% RH	0 - 5,000 ppm	10 ppb VOC, 0.1 ppm CO₂, 0.1% RH, 0.1 °F (0.1 °C)	±3% RH, ±1.0 °F (±0.5 °C), ±3% or ±50 ppm CO₂
987	1 - 2,000 ppm	14 - 140 °F (–10 - 60 °C)	5 - 95% RH	0 - 5,000 ppm	1 ppm VOC, 0.1 ppm CO₂, 0.1% RH, 0.1 °F (0.1 °C)	±3% RH, ±1.0 °F (±0.5 °C), ±3% or ±50 ppm CO₂
