Burleigh WA-1000 Laser Wavelength Meter

The Burleigh (now under Bristol Instruments) WA-1000 Laser Wavelength Meter has wavelength ranges of 400 nm to 1100 nm (VIS), 600 to 1800 nm (NIR), and 1.5 to 4 µm (IR). With an accuracy of ±1.0 ppm, a maximum input of 2 mW (VIS, NIR) and 100 mW (IR), the WA-1000 is the ideal device for a variety of testing requirements. The Burleigh WA-1000 is user-friendly and reliable.

Product Info

Wavelength Range	VIS:	400 – 1100 nm
	NIR:	600 – 1800 nm
	IR:	1.5 – 4 µm
Display Resolution	0.001 nm
	0.01 cm
	0.1 GHz
Optical Input - Signal Sensitivity	20 µW (VIS, NIR), 1 mW (IR)
Optical Input - Signal Max. Input	2 mW (VIS, NIR), 100 mW (IR)
Measurement Update	0.25 s (4 measurements/s)
Optical Input - Fiber	FC/PC standard, FC/APC optional
Optical Input - Free Space Beam	2 mm aperture
Instrument Interface	RS-232 standard, GPIB/IEEE-488 optional
Dimensions	15.3 x 8.0 x 11.5 in (389 x 203 x 292 mm)
Weight	25 lb. (11.3 kg)

Accuracy of ±1 ppm
Continuous calibration with built-in wavelength standard
Operation from 400 nm to 4 µm
Displays wavelength, wave-number or frequency
Convenient, pre-aligned fiber coupling
Free space input for IR wavelengths
Visible tracer beam to facilitate free space beam alignment

SKU: BURL-WA-1000

Burleigh WA-1000 Laser Wavelength Meter

Related Products

Keysight 86120B Lightwave Optical Wavelength Meter

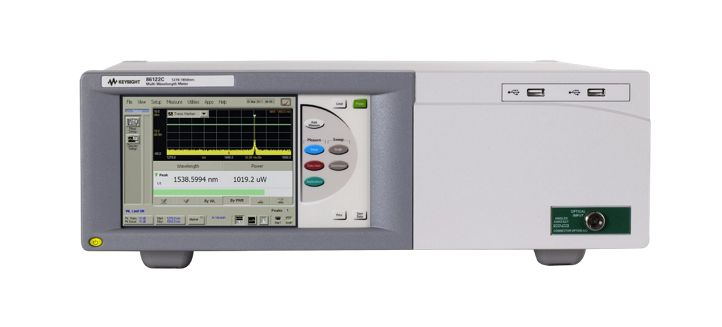

Keysight 86122C Multi-Wavelength Meter
