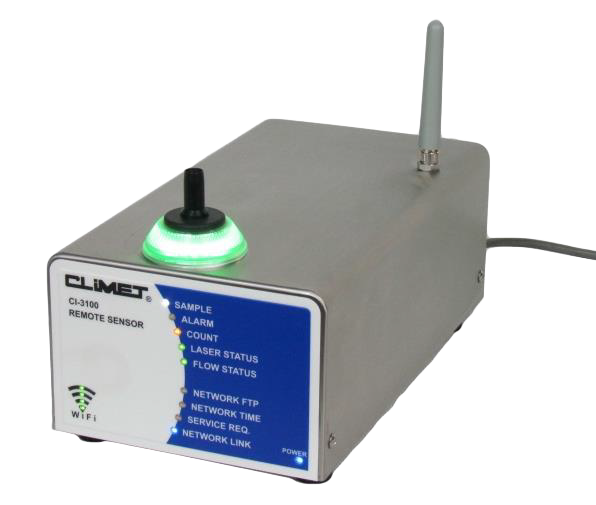

Climet CI-3100 Trident Airborne Particle Counter

The Climet CI-3100 Trident Airborne Particle Counter provides continuous monitoring with a 1 CFM flow rate and dual-channel detection at 0.5 and 5.0 microns. It features Power-over-Ethernet (PoE+), Wi-Fi, and AC power options, a 10,080-sample memory buffer, and an internal HEPA-filtered exhaust. The instrument is compatible with LIMS and meets ISO 21501-4, ISO 14644-1/2, and FDA 21 CFR Part 11 standards for cleanroom compliance.

Product Info Product Options Related Products

Particle Channel Sizes	0.5 µm and 5.0 µm (2 channels)
Flow Rate	1 CFM (28.3 LPM), electronic closed-loop control
Concentration Limit	1.0 × 10⁶ particles/ft³ (35.3 × 10⁶ particles/m³)
Memory Buffer	10,080 samples (approx. 7 days)
Power Options	Power-over-Ethernet (PoE+), 24 VDC, or universal AC
Connectivity	Ethernet, Wi-Fi, Modbus, Serial, FTP, Webpage
Data Output	LIMS/SCADA/MODA compatible, no middleware required
Internal Exhaust	HEPA-filtered, ISO Class 3
Alarm/Indicators	Light ring, LED indicators, 100 dB audible alarm
Dimensions	6.125” W × 4” H × 11.125” D (15.56 × 10.16 × 28.26 cm)
Environmental Range	32–100°F (0–37.8°C), 0–95% RH (non-condensing)
Compliance	ISO 21501-4, ISO 14644-1/2, EU GMP Annex 1, FDA 21 CFR Part 11
Included Accessories	Zero count filter, IQ/OQ docs, manual, external exhaust fitting
Optional Accessories	RH/Temp probe, alarm tower, isokinetic probes, diffusers

Continuous Monitoring in Critical Areas
High Accuracy & Unsurpassed Repeatability of Measurement
10,080 Sample Memory Buffer
VHP Compatible
PoE+, Wi-Fi, or A/C Available
HEPA Filtered Exhaust
Seamless Stainless Steel Enclosure
Remotely Controlled and a Rear Panel ON/OFF Button
User Enabled/Disabled Light Ring
Rear Output Contacts for a dedicated Light Tower

ISO 21501-4: Light Scattering Airborne Particle Counter for Clean Spaces
ISO 14644: Cleanroom Standards
- -1: Classification of air cleanliness by particle concentration
- -2: Monitoring to provide evidence of cleanroom performance related to air cleanliness by particle concentration
EU GMP, Annex 1
21 CFR Part 11

SKU: CLIM-CI-3100
