Doble M5500 Sweep Frequency Response Analyzer

The Doble M5500 Sweep Frequency Response Analyzer is a high-performing analysis device that combines a vast frequency range with an incredible sweep speed. The M5500 Frequency Response Analyzer collects precise data on equipment like reactors and transformers, delivering in-depth analysis on the performance.

Coming in a compact and durable design, the Doble M5500 analyzer requires only 15-30 seconds for testing and covers a frequency range between 20 Hz to 2 MHz. The sweep frequency response analyzer also delivers an immense dynamic range that's over 150 dB along with an updated SFRA v6 Software with a user-friendly interface. The Doble M5500 Sweep Frequency Response Analyzer is an ideal device to test all aspects of transformer performance with accurate measurements and easily repeated tests.

The Doble M5500 also goes with the SFRA6 software (please see data sheet provided).

Product Info Related Products

Excitation Source
Channels	2
Frequency Range	10 Hz-25 MHz
Output Voltage	20 V peak-to-peak at 50 Ohms
Output Protection	Short circuit protected
Source Impedance	50 Ω
Measurement Channels
Channels	2
Sampling	Simultaneous
Frequency Range	10 Hz – 25 MHz
Max. Sampling rate	100 MS/s
Input Impedance	50 Ω
Data Collection
Test Method	Sweep Frequency
PC Comm	USB/Wireless
Frequency Range	20 Hz – 2 MHz
Number of Points	1045 points (Default) Up to 5000 points (Extended Range)
Point Spacing	Variable, Linear or Logarithmic
Dynamic Range	>150 dB
Repeatability	±1 dB to –80 dB
IF Bandwidth	< 10% of frequency, adaptive
Data Display
Tabulation	Frequency/Magnitude/Phase
Export Formats	CSV/IEC/CIGRE
Plotting	Frequency vs. Magnitude / Phase
Analysis	Difference, Sub-band Cross-Correlation
Physical Specifications
Dimensions	12.25 x 9.5 x 3.7 in 31 x 24 x 9.4 cm
Weight	7 lbs (3.2 kg)
Power Supply	24 VDC (40 W Universal AC in power supply)
Temperature	-25° to + 55°C operating -40° to + 85°C storage
Relative Humidity	0% to 95 % non condensing

Lightweight and rugged portable test instrument
Typical sweep speeds between 15 and 30 seconds for reduced overall testing time
Default frequency range of 20 Hz to 2 MHz, expanded range from 10 Hz to 25 MHz
Dynamic Range > 150 dB
Wired or wireless connection to the controlling PC\

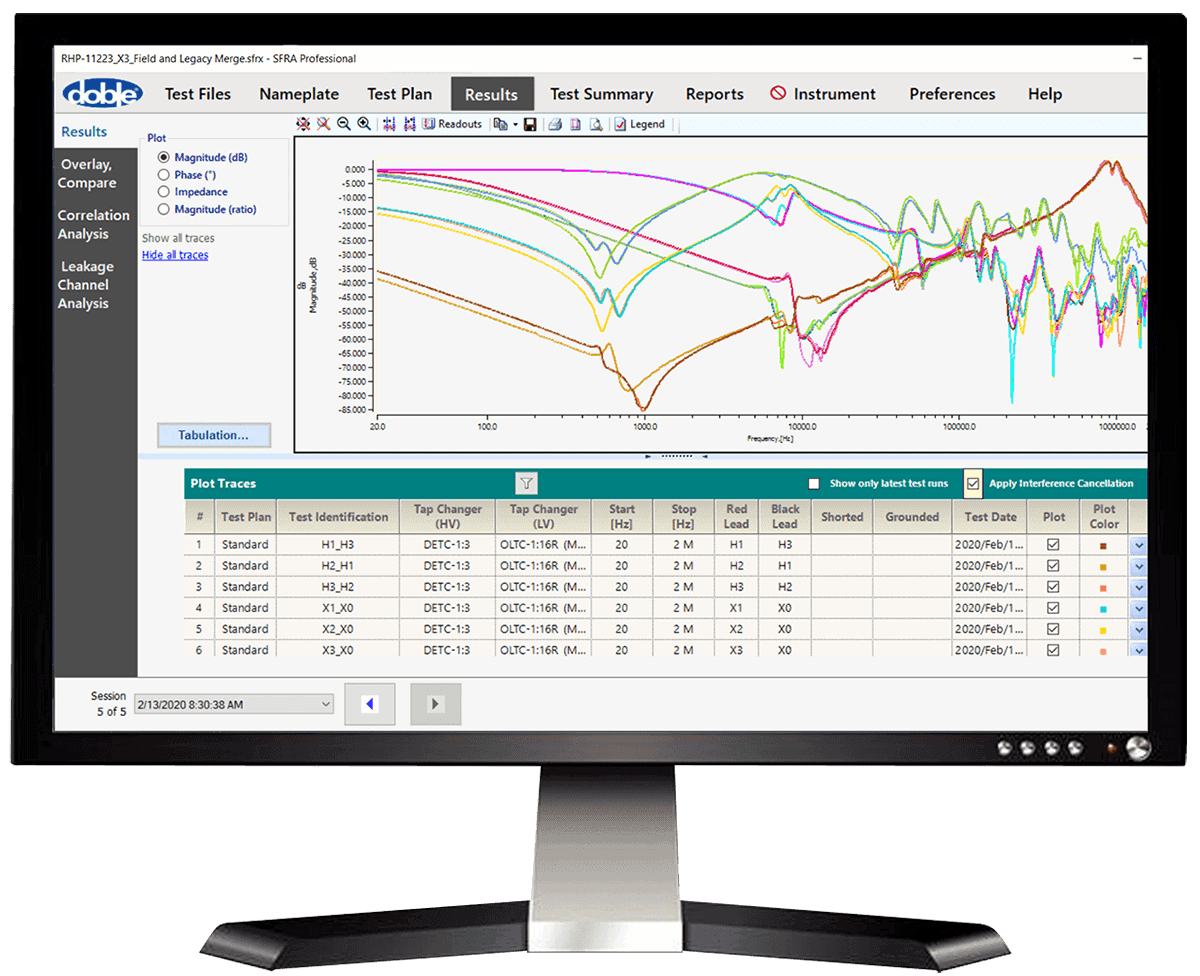

Includes new SFRA v6 Software for control and analysis
“CE” mark indicating conformity to European Union directives regarding electromagnetic compliance, safety, and hazardous substances

SKU: DOBL-M5500
