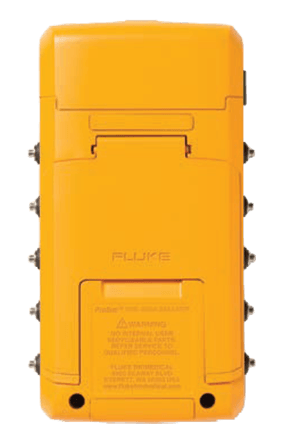

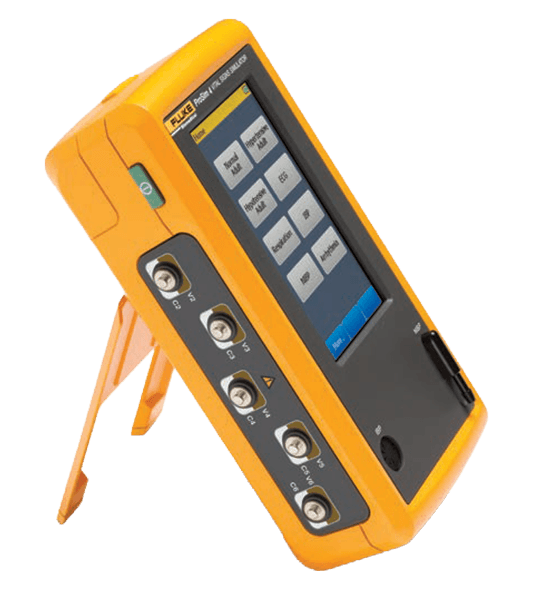

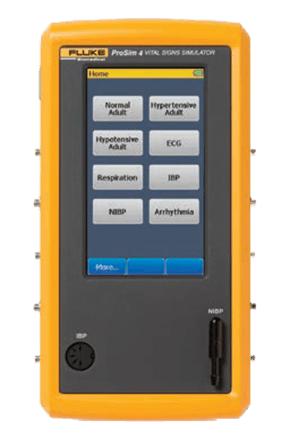

Fluke Biomedical ProSim 4

Vital Signs Simulator | 12-Lead ECG

The Fluke Biomedical ProSim 4 is a portable vital signs simulator designed for rapid patient monitor performance verification and troubleshooting. Combining 12-lead ECG, respiration, invasive blood pressure (IBP), and non-invasive blood pressure (NIBP) simulation in a compact handheld device, the ProSim 4 streamlines preventive maintenance and inspection workflows for biomedical technicians. Its touchscreen interface, customizable presets, and automated test sequences help users complete common monitor checks in one minute or less while maintaining repeatable, accurate results.

Product Info

ECG Simulation	12-Lead ECG
ECG Rate	30 - 320 BPM
Respiration Rate	0 - 100 BrPM
IBP Channels	1 Isolated Channel
IBP Static Pressure	0, 80, 160, and 250 mmHg
NIBP Pressure Range	10 - 400 mmHg
NIBP Accuracy	±(1% Reading + 1 mmHg)
Display	Color LCD Touchscreen
Battery Life	4 Hours Minimum, Typical 40 NIBP Cycles
Communication	USB Port
Dimensions	18 x 9.3 x 5.5 cm (7.1 x 3.7 x 2.2 in)
Weight	0.88 kg (1.93 lb)
Operating Temperature	10°C - 40°C
Humidity Range	10% - 90% Non-Condensing

Simulates 12-lead ECG, respiration, IBP, and NIBP signals
Touchscreen interface with one-tap testing workflows
Customizable patient presets and automated test sequences
Repeatable NIBP testing within ±2 mmHg independent of the device under test
Stay-connected ECG posts for secure lead connections
Portable design weighing less than 2 lb (0.88 kg)
Rechargeable lithium-ion battery for all-day quick-check testing
Multi-language user interface
Supports cardiac failure, exercise, respiration, and monitor testing auto-sequences

Patient Monitor Performance Verification
Biomedical Equipment Maintenance
Preventive Maintenance Programs
ECG Monitor Testing
NIBP Monitor Testing
IBP Monitor Testing
Respiration Monitor Testing
Patient Monitor Troubleshooting
Incoming Equipment Inspection
Clinical Engineering Programs

SKU: FLUK-PROSIM4
