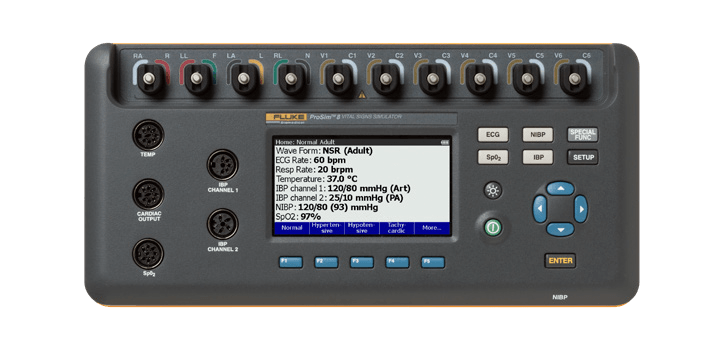

Fluke Biomedical ProSim 8
Multi-Parameter Patient Monitor and Vital Signs Simulator
The Fluke Biomedical ProSim 8 is an 8-in-1 patient simulator designed for preventive maintenance, performance verification, and troubleshooting of patient monitoring equipment. This multi-parameter patient monitor and vital signs simulator combines ECG simulation, respiration simulation, temperature simulation, invasive blood pressure (IBP) simulation, non-invasive blood pressure (NIBP) simulation, fetal/maternal ECG simulation, cardiac output simulation, and arrhythmia simulation in a single handheld platform. The ProSim 8 streamlines biomedical equipment testing and patient monitor testing workflows with automated test sequences, physiologically synchronized vital sign simulations, and onboard data capture capabilities, helping biomedical technicians improve testing efficiency while supporting accurate performance verification of patient monitoring systems.
| ECG Rate Range | 10 - 360 BPM |
| ECG Amplitude | 0.05 - 5.0 mV |
| NIBP Pressure Source | 15 - 400 mmHg |
| NIBP Simulations | Adult, Neonatal, Arrhythmia, Leak Test |
| IBP Channels | 2 Independently Isolated Channels |
| Static IBP Pressure | -10 - +300 mmHg |
| Respiration Rate | 10 - 150 BrPM |
| Temperature Simulation | 30.0°C - 42.0°C |
| Battery Life | 9 Hours Minimum |
| Display | Color LCD |
| Dimensions | 5.7 x 11.9 x 3.4 in (14.5 x 30.2 x 8.6 cm) |
| Weight | 4 lb (1.81 kg) |
- Combines ECG, fetal ECG, arrhythmia, respiration, temperature, IBP, NIBP, and cardiac output simulation in one device.
- Simulates normal rhythms, pacemaker signals, and a wide range of arrhythmias for patient monitor verification.
- Provides synchronized vital sign outputs across ECG, blood pressure, respiration, and other parameters.
- Supports invasive blood pressure testing with two independently isolated channels.
- Performs non-invasive blood pressure simulations, leak testing, and pressure relief valve verification.
- Includes predefined simulations and automated test sequences for faster preventive maintenance procedures.
- Supports barcode scanning, direct data capture, and workflow automation with optional OneQA software.
- Features a long-life rechargeable battery for portable field and laboratory testing.
- Patient monitor preventive maintenance
- Biomedical equipment verification
- Healthcare technology management (HTM)
- ECG monitor testing
- NIBP monitor performance testing
- IBP transducer verification
- Fetal and maternal monitor testing
- Clinical engineering inspections
- Hospital equipment troubleshooting
- Medical device service and calibration
SKU: FLUK-PROSIM8
