Keysight 8751A Baseband, IF and RF Network Analyzer

HP/Agilent 8751A Baseband, IF and RF Network Analyzer
Enlarge Image

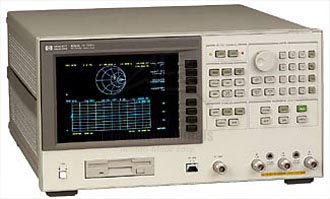

Keysight 8751A
Request Quote Print Page
Manual

The Keysight 8751A network analyzer is a high-throughput instrument with lab precision that covers 5 Hz to 500 MHz. The 8751A provides resolution of 0.001 Hz, 0.001 dB, 0.001 degree, and 10 ps for characterizing the linear behavior of either passive or active networks, devices, or components in the lab and the production test areas. The built-in 1.44 MB disk drive is for direct save/recall of instrument state, calibration data, and application programs for your customization. Dedicated 50/75 O S-parameter test sets, 50/75 ohms T/R test kits, and the 1 M ohms input adaptors are all available.



Features:

  • 5 Hz to 500 MHz
  • ±0.02 dB, ±0.12° dynamic accuracy
  • 0.001 Hz, 0.001 dB, 0.001 degree, 10 ps resolution
  • Full 2-port and interpolative calibration
  • Conjugate matching analysis
  • 10 updates of 201 sweep points per second
  • 0.4 ms/point fast list sweep (IFBW = 4 kHz)
  • Up to 4 traces simultaneous measurement/display
